This is a top-performance motor designed with an extremely low kV value and an ultra-high voltage platform (12S-24S). It was created specifically for applications with extreme demands on pull, efficiency, or both, providing an unparalleled torque generation foundation that allows the motor to smoothly drive giant blades at extremely low speeds (typically a few hundred RPM). This “low speed, high torque” mode is ideal for those seeking maximum endurance or quiet operation.
| Specification | |
| Weight： | 274g ((including the cables) |
| Configuration: ： | 12N14P |
| Stator dimensions： | φ47*15mm |

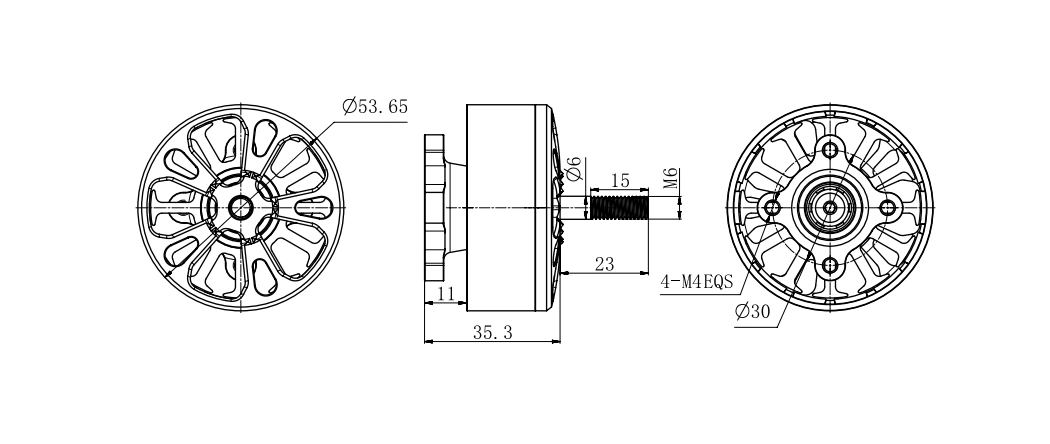

| Motor size ： | φ53.65*35.3 mm |
| Shaft diameter： | 6.0 mm |
| Motor Cable： | 14awg*290mm |
| S4715 KV280 Motor | S4214 KV440 Motor |
| Max thrust: 7kg | Max thrust: 6.89kg |
| Max power: 2484W | Max power: 2596W |
| Recommended for battery：12S | Recommended for battery：12S |
| Suggested ESC: 120A | Suggested ESC: 80A |
| Recommended propeller: 15inches | Recommended propeller: 15inches |
| Testing Data / Lithium Battery :12S | ||||||||||
| Item No. | Voltage | Prop | ESC | Throttle | Thrust | Current | RPM | Power | Efficiency | Torque |
| (V) | (g) | (A) | (W) | (g/W) | (N.m) | |||||
| S4715 KV280 | 46.24 | 12S-120A | EMP15*7-3 | 40% | 1516 | 4.6 | 4550 | 212.7 | 7.13 | 0.34 |
| 46.24 | 45% | 1945 | 6.42 | 5113 | 296.86 | 6.55 | 0.44 | |||
| 46.18 | 50% | 2409 | 8.6 | 5658 | 397.15 | 6.07 | 0.54 | |||
| 46.15 | 55% | 2791 | 12.19 | 6159 | 562.57 | 4.96 | 0.68 | |||
| 46.05 | 60% | 3316 | 14.88 | 6611 | 685.22 | 4.84 | 0.77 | |||
| 46.02 | 65% | 3726 | 17.91 | 7046 | 824.22 | 4.52 | 0.88 | |||
| 46.01 | 70% | 4293 | 21.42 | 7445 | 985.53 | 4.36 | 0.98 | |||
| 45.98 | 75% | 4717 | 25.82 | 7827 | 1187.2 | 3.97 | 1.12 | |||
| 45.93 | 80% | 5283 | 30.58 | 8194 | 1404.54 | 3.76 | 1.2 | |||
| 45.87 | 85% | 5707 | 35.41 | 8537 | 1624.26 | 3.51 | 1.34 | |||
| 45.76 | 90% | 6257 | 41.18 | 8846 | 1884.4 | 3.32 | 1.43 | |||
| 45.73 | 95% | 6722 | 48.12 | 9091 | 2200.53 | 3.05 | 1.52 | |||
| 45.62 | 100% | 7032 | 54.47 | 9218 | 2484.92 | 2.83 | 1.58 | |||
| Testing Data / Lithium Battery :12S | ||||||||||
| Item No. | Voltage | Prop | ESC | Throttle | Thrust | Current | RPM | Power | Efficiency | Torque |
| (V) | (g) | (A) | (W) | (g/W) | (N.m) | |||||
| S4715 KV440 | 31.93 | 8S-80A | EMP15*7-3 | 40% | 1758 | 8.56 | 4939 | 273.32 | 6.43 | 0.41 |
| 31.93 | 45% | 2247 | 12.15 | 5547 | 387.95 | 5.79 | 0.52 | |||
| 31.84 | 50% | 2734 | 16.15 | 6093 | 514.22 | 5.32 | 0.62 | |||
| 31.79 | 55% | 3189 | 20.61 | 6555 | 655.19 | 4.87 | 0.73 | |||
| 31.74 | 60% | 3644 | 25.38 | 6983 | 805.56 | 4.52 | 0.83 | |||
| 31.65 | 65% | 4146 | 31.13 | 7394 | 985.26 | 4.21 | 0.95 | |||
| 31.62 | 70% | 4621 | 36.93 | 7749 | 1167.73 | 3.96 | 1.05 | |||
| 31.48 | 75% | 5085 | 43.75 | 8116 | 1377.25 | 3.69 | 1.15 | |||
| 31.46 | 80% | 5545 | 51.21 | 8420 | 1611.07 | 3.44 | 1.25 | |||
| 31.34 | 85% | 5931 | 59.43 | 8711 | 1862.54 | 3.18 | 1.34 | |||
| 31.25 | 90% | 6288 | 68.77 | 8948 | 2149.06 | 2.93 | 1.42 | |||
| 31.09 | 95% | 6628 | 77.6 | 9110 | 2412.58 | 2.75 | 1.5 | |||
| 31.12 | 100% | 6898 | 83.44 | 9325 | 2596.65 | 2.66 | 1.5 | |||
