The 2807 motor represents the maturity and balance of current 5-inch FPV power systems. It no longer simply pursues exaggerated figures, but rather finds a perfect balance between power, efficiency, weight, and reliability. For most riders, from beginners to advanced, and even many professional freestyle and racing enthusiasts, choosing a pair of reliable 2807 motors almost means acquiring a powerful, reliable power foundation that “won’t go wrong.”
| Specification | ||
| Weight： | 60g(Including the cables) | |
| Structural form： | 12N14P | |
| Stator core dimensions： | φ28*7 mm | |

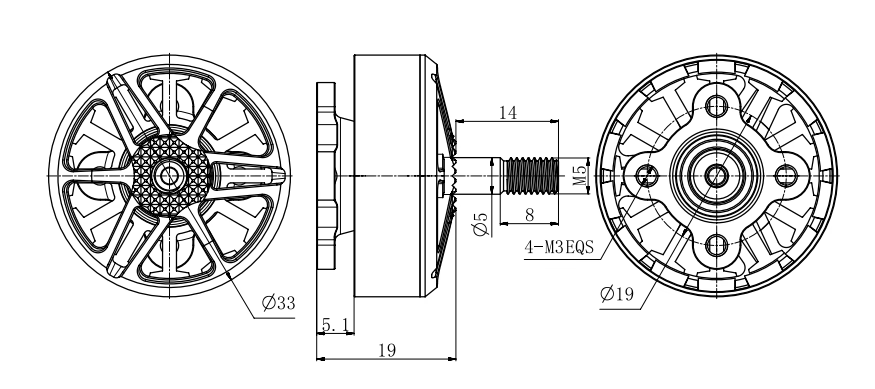

| Motor size ： | φ34.2*19.6 mm | |
| Shaft diameter： | 5.0 mm | |
| Motor Cable:： | 18awg*250mm | |
| FA2807 KV1300 Motor | FA2807 KV1500 Motor | FA2807 KV1750 Motor |
| Max thrust: 2.21kg | Max thrust: 2.49kg | Max thrust: 2.22kg |
| Recommended for lithium battery: 6S | Recommended for lithium battery: 6S | Recommended for lithium battery: 4S |
| Recommended propeller: 7 inches | Recommended propeller: 6-7 inches | Recommended propeller: 7 inches |
| ESC recommended：50A | ESC recommended：50A | ESC recommended：60A |
| Item No. | Voltage (V) |
Prop | Throttle | Thrust (g) |
Current (A) |
RPM | Power (W) |
Efficiency (g/W) |
| FA2807 KV1300 | 22.78 | 7045-3 | 40.00% | 870 | 9.8 | 13090 | 223.24 | 3.8971 |
| 22.63 | 50.00% | 1071 | 13.1 | 14450 | 296.45 | 3.6127 | ||
| 22.53 | 60.00% | 1295 | 17.1 | 15900 | 385.26 | 3.3613 | ||
| 22.13 | 70.00% | 1560 | 22.1 | 17320 | 489.07 | 3.1897 | ||
| 22.16 | 80.00% | 1871 | 29.3 | 18630 | 649.29 | 2.8816 | ||
| 21.98 | 90.00% | 2163 | 36.8 | 19750 | 808.86 | 2.6741 | ||
| 21.75 | 100.00% | 2210 | 38.2 | 19985 | 830.85 | 2.6599 | ||
| Item No. | Voltage (V) |
Prop | note | Thrust (g) |
Current (A) |
RPM | Power (W) |
Efficiency (g/W) |
| FA2807 KV1500 | 21.58 | 7040-3 | 50.00% | 355 | 2.8 | 8075 | 60.42 | 5.8751 |
| 21.38 | 60.00% | 567 | 5.4 | 9835 | 115.45 | 4.9111 | ||
| 21.3 | 70.00% | 762 | 8.5 | 11560 | 181.05 | 4.2088 | ||
| 21.15 | 80.00% | 993 | 11.9 | 12780 | 251.69 | 3.9454 | ||
| 21.01 | 90.00% | 1210 | 16.6 | 14300 | 348.77 | 3.4694 | ||
| 20.91 | 100.00% | 2490 | 55.5 | 21830 | 1160.51 | 2.1456 | ||
| Item No. | Voltage (V) |
Prop | note | Thrust (g) |
Current (A) |
RPM | Power (W) |
Efficiency (g/W) |
| FA2807 KV1500 | 21.53 | 7035-3 | 50.00% | 335 | 2.6 | 8120 | 55.98 | 5.9845 |
| 21.36 | 60.00% | 563 | 5.1 | 10530 | 108.94 | 5.1682 | ||
| 21.25 | 70.00% | 745 | 8.1 | 11900 | 172.13 | 4.3282 | ||
| 21.11 | 80.00% | 982 | 11.6 | 13500 | 244.88 | 4.0102 | ||
| 21.03 | 90.00% | 1190 | 16.2 | 14700 | 340.69 | 3.493 | ||
| 20.85 | 100.00% | 2460 | 52.3 | 22530 | 1090.46 | 2.2559 | ||
| Item No. | Voltage (V) |
Prop | note | Thrust (g) |
Current (A) |
RPM | Power (W) |
Efficiency (g/W) |
| FA2807 KV1750 | 16.78 | 7040-3 | 50.00% | 341 | 3.4 | 8060 | 57.05 | 5.977 |
| 16.66 | 60.00% | 573 | 6.4 | 9855 | 106.62 | 5.374 | ||
| 16.45 | 70.00% | 785 | 10.3 | 11660 | 169.44 | 4.633 | ||
| 16.25 | 80.00% | 945 | 15.2 | 12850 | 247 | 3.8259 | ||
| 16.16 | 90.00% | 1170 | 20.9 | 14135 | 337.74 | 3.4642 | ||
| 16.04 | 100.00% | 2220 | 51.1 | 20855 | 819.64 | 2.7085 | ||
| Item No. | Voltage (V) |
Prop | note | Thrust (g) |
Current (A) |
RPM | Power (W) |
Efficiency (g/W) |
| FA2807 KV1750 | 16.79 | 7035-3 | 50.00% | 330 | 3.2 | 8120 | 53.73 | 6.142 |
| 16.62 | 60.00% | 562 | 5.2 | 10520 | 86.42 | 6.5028 | ||
| 16.43 | 70.00% | 772 | 9.8 | 11200 | 161.01 | 4.7946 | ||
| 16.23 | 80.00% | 925 | 14.3 | 13150 | 232.09 | 3.9855 | ||
| 16.11 | 90.00% | 1150 | 19.5 | 14450 | 314.15 | 3.6607 | ||
| 16.03 | 100.00% | 2160 | 46.9 | 21230 | 751.81 | 2.8731 |
