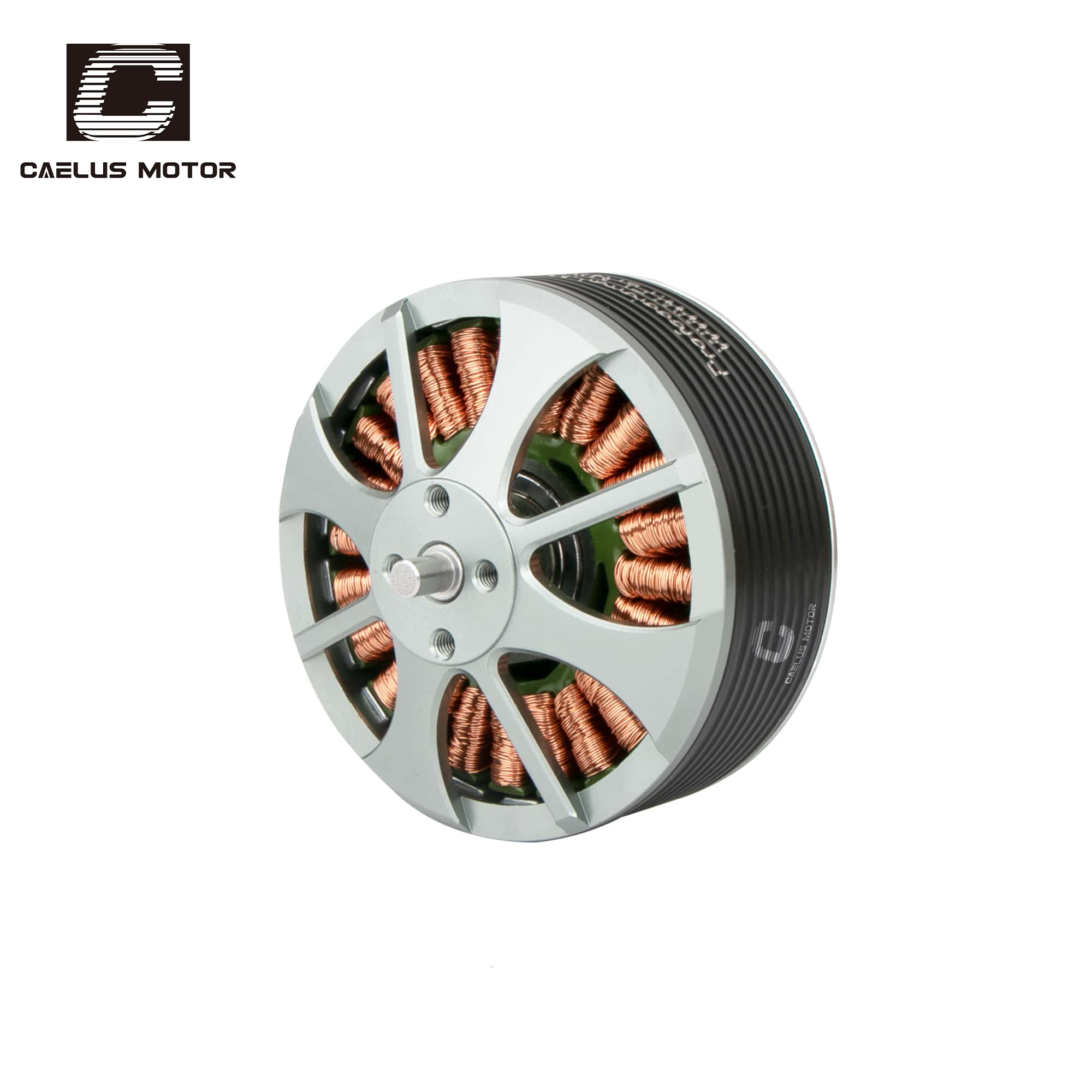

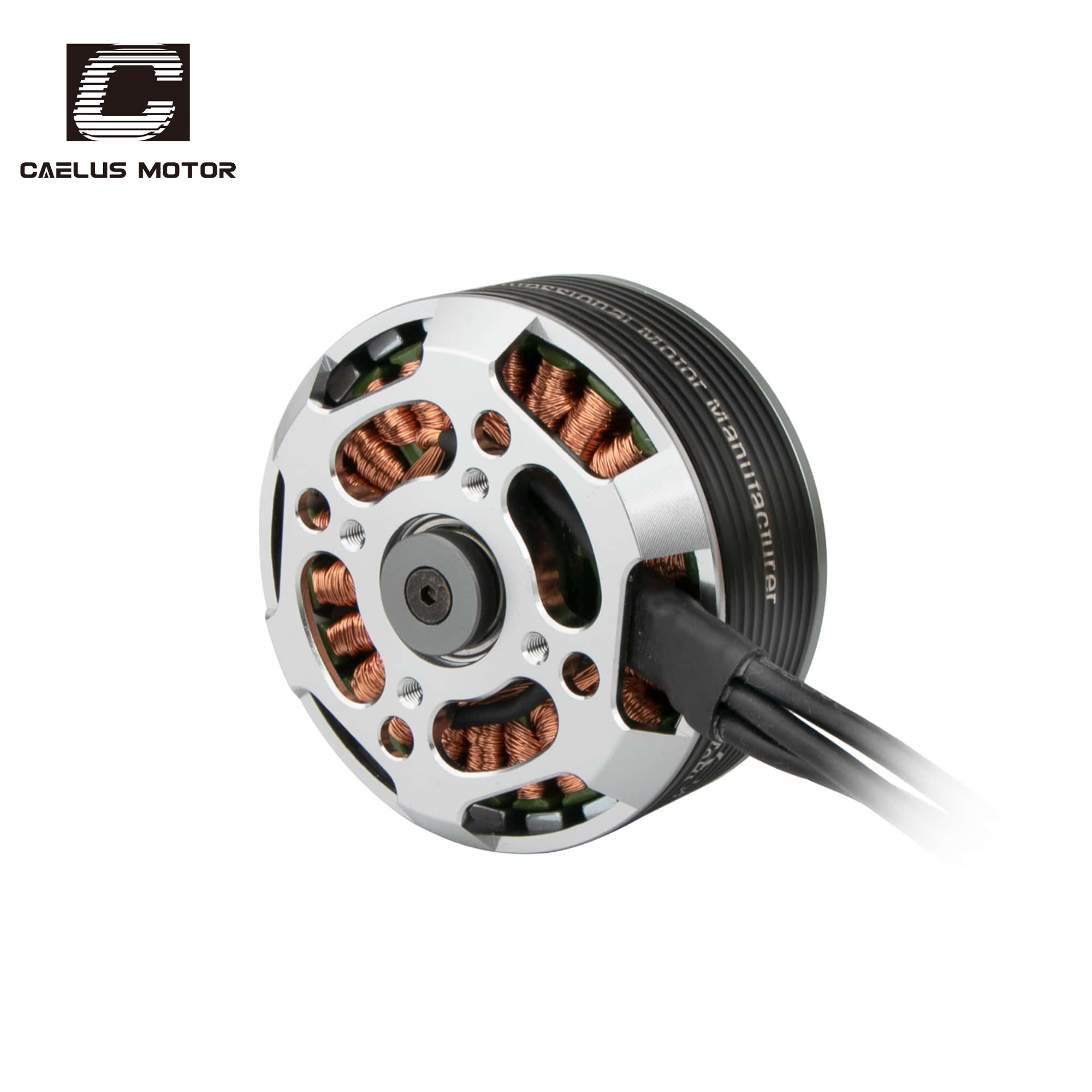

ST5215 MultiRotor Motor

The 5215 motor is the ultimate embodiment of the “super-large platform, extreme volume” design philosophy. It is no longer an optimization of a single performance metric, but rather, by maximizing the stator volume, it has established an overwhelming absolute advantage in all dimensions such as torque, power, and thermal capacity. It is specifically designed for national-level or super-large enterprise projects that have ultimate demands for “absolute power” and “absolute reliability”, such as: prototypes of hundred-kilogram heavy logistics drones, large special engineering drones, and the lift systems of the next-generation heavy eVTOL aircraft.

The nearly maximum physical dimensions achievable through the current project provide an unparalleled benchmark for torque, power and thermal management. It provides the previously missing key power foundation for the application of unmanned aerial vehicles with a payload of over 100 kilograms and a flight range of several hours. The performance grade and reliability standards it represents are setting a new benchmark for the super-heavyweight unmanned aerial vehicle industry.

Specification

Weight: 289.0g (including the cables)

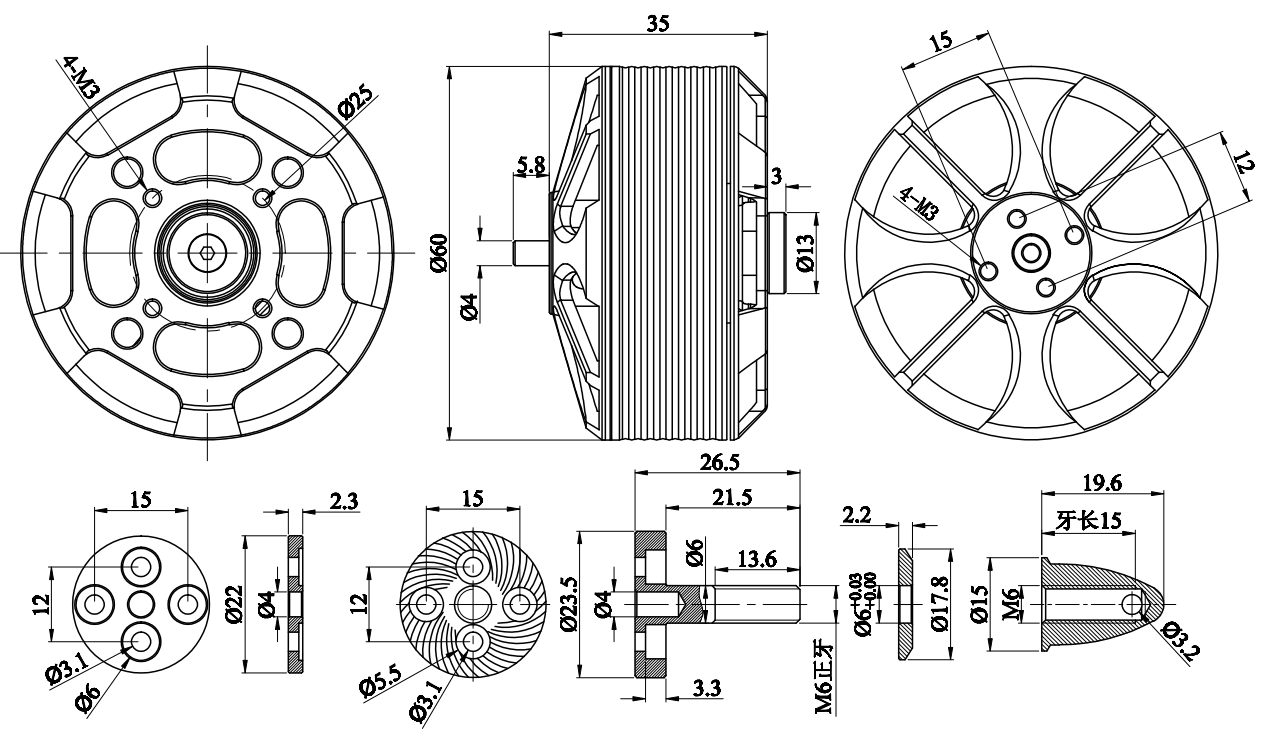

Motor Size: 60 x 35mm

Shaft Diameter: 5.0mm

Motor Mount: 19*25mm(M3*4)

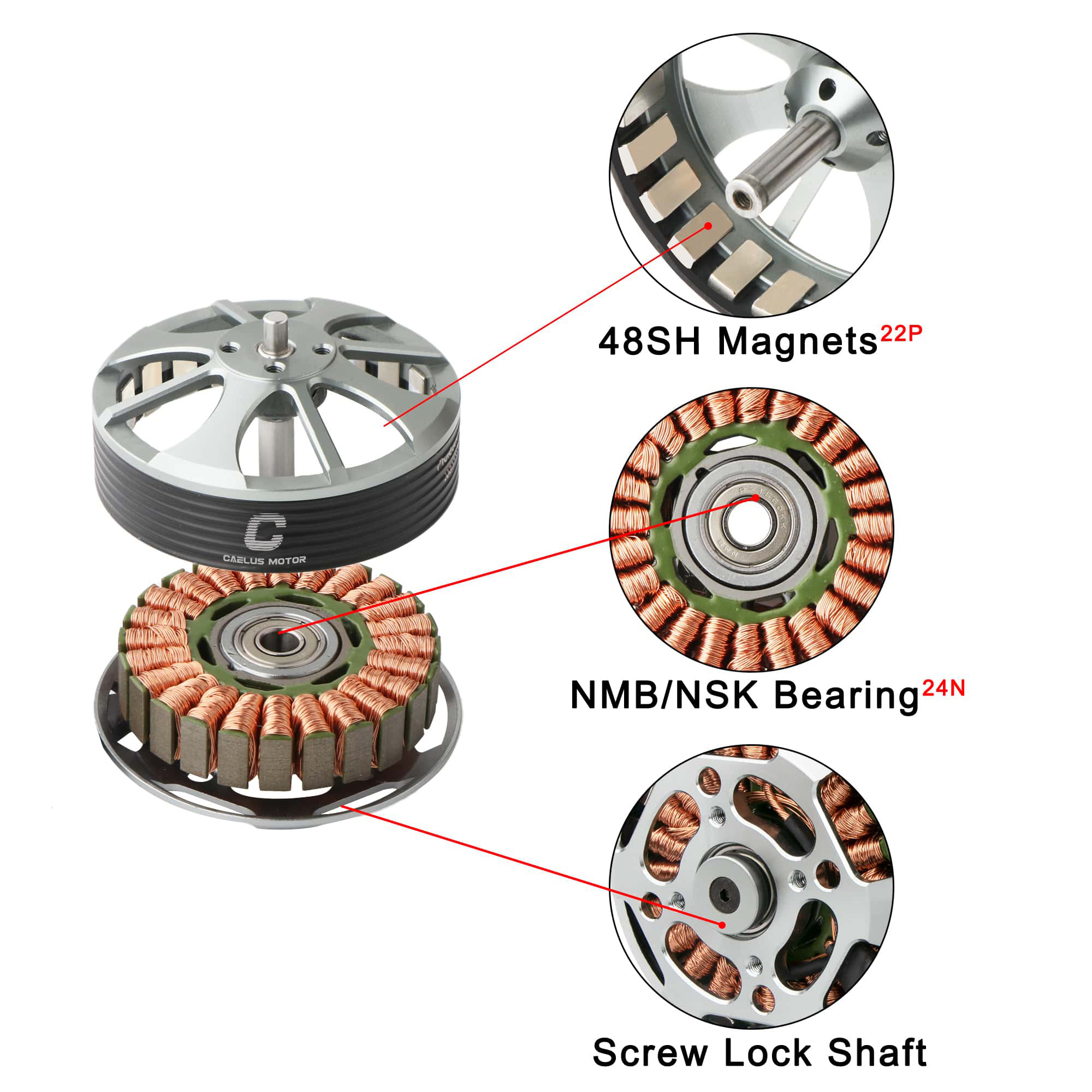

Configuration: 24N22P

Motor Cable: 18#AWG 220mm

Recommend: 17~22″ inch prop application

KV Value: 340KVor customized KV

ST5215-340KV Motor

Max thrust：5360g

Volts：24.0V(6S)

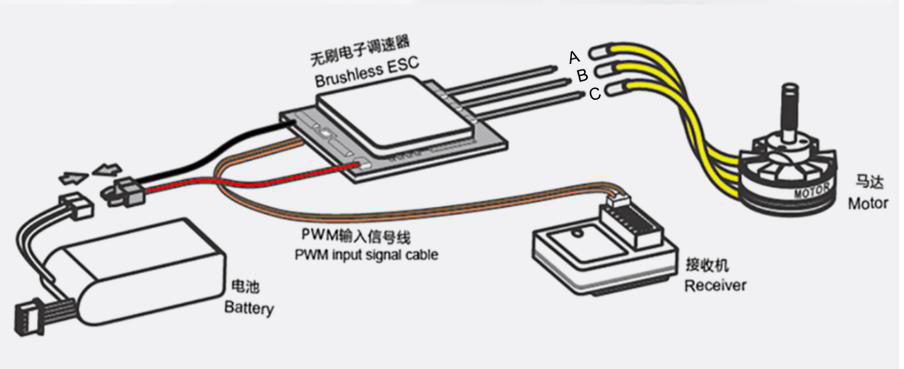

Suggested ESC: 50A~60A

Maximum Power:1039.2W

Suggested Prop: CF1755TM, CF1855TM,CF2055TM

Item No.	Prop	Throttle	Voltages	Load Current	Power	Thrust	Efficiency	Temperature
Item No.	（inch）	（%）	（V）	（A）	(W)	(g)	(g/W)	(in full throttle load 1min)
ST5215 340KV	CF1755TM	50%	24	5.9	141.6	1290	9.11	58℃
		55%	24	8	192	1620	8.44
		57%	24	10	240	1890	7.88
		61%	24	12	288	2170	7.53
		63%	24	14	336	2410	7.17
		66%	24	16	384	2610	6.8
		68%	24	18	432	2820	6.53
		71%	24	20	480	3060	6.38
		74%	24	22	528	3280	6.21
		76%	24	24	576	3420	5.94
		78%	24	26	624	3610	5.79
		80%	24	28	672	3810	5.67
		84%	24	30	720	4020	5.58
		100%	24	31.9	765.6	4190	5.47
ST5215 340KV	CF1855TM	47%	24	6	144	1340	9.31	65℃
		51%	24	8	192	1680	8.75
		54%	24	10	240	1940	8.08
		56%	24	12	288	2210	7.67
		59%	24	14	336	2470	7.35
		61%	24	16	384	2720	7.08
		64%	24	18	432	2950	6.83
		65%	24	20	480	3110	6.48
		67%	24	22	528	3390	6.42
		70%	24	24	576	3550	6.16
		72%	24	26	624	3710	5.95
		74%	24	28	672	3920	5.83
		76%	24	30	720	4110	5.71
		79%	24	32	768	4290	5.59
		100%	24	37.5	900	4680	5.2
ST5215 340KV	CF2055TM	50%	24	7.6	182.4	1720	9.43	73℃
		53%	24	10	240	2030	8.46
		55%	24	12	288	2280	7.92
		58%	24	14	336	2510	7.47
		60%	24	16	384	2800	7.29
		62%	24	18	432	3070	7.11
		64%	24	20	480	3240	6.75
		66%	24	22	528	3460	6.55
		68%	24	24	576	3650	6.34
		69%	24	26	624	3800	6.09
		72%	24	28	672	4020	5.98
		73%	24	30	720	4190	5.82
		76%	24	32	768	4380	5.7
		77%	24	34	816	4570	5.6
		79%	24	36	864	4730	5.47
		100%	24	43.3	1039.2	5360	5.16
ST5215 340KV	CF2260TM	47%	24	8	192	1860	9.69	HOT
		49%	24	10	240	2210	9.21
		51%	24	12	288	2510	8.72
		54%	24	14	336	2730	8.13
		56%	24	16	384	2980	7.76
		57%	24	18	432	3230	7.48
		59%	24	20	480	3450	7.19
		61%	24	22	528	3680	6.97
		62%	24	24	576	3920	6.81
		63%	24	26	624	4090	6.55
		65%	24	28	672	4270	6.35
		67%	24	30	720	4460	6.19
		68%	24	32	768	4630	6.03
		70%	24	34	816	4810	5.89
		72%	24	36	864	4980	5.76
		74%	24	38	912	5120	5.61
		75%	24	40	960	5380	5.6
		76%	24	42	1008	5520	5.48
		79%	24	44	1056	5720	5.42
		100%	24	53.1	1274.4	6460	5.07
Notes: The test condition oftemperature is motor surface temperature in 100% throttle while the motor run 15 s.environment temperature 26℃
