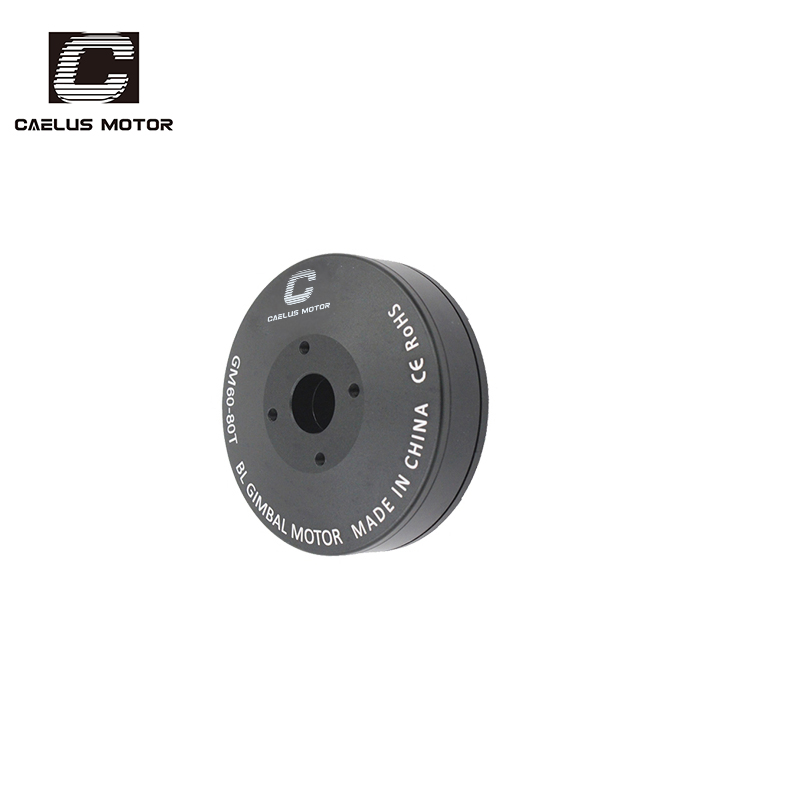

The drone gimbal motor GM60-80T—its lowdown and perks. This motor sits as a high-end workhorse between the BGM52 series we chatted about earlier and the top-dog GM80 line, and it’s super widely used in pro film/TV and industrial applications.
You can think of the GM60-80T as the “backbone” and performance gold standard for pro video stabilization. It nails the combo of top-tier resolver feedback tech and the tried-and-true 60mm large motor platform, dishing out:Load capacity that handles almost all pro shooting needs；Way faster response and tighter control than regular encoder setups, all thanks to that resolver；The sweetest spot between top-shelf performance and a system that’s not overly complicated or pricey
GM60-80T Gimbal Motor Specification
Weight：189g

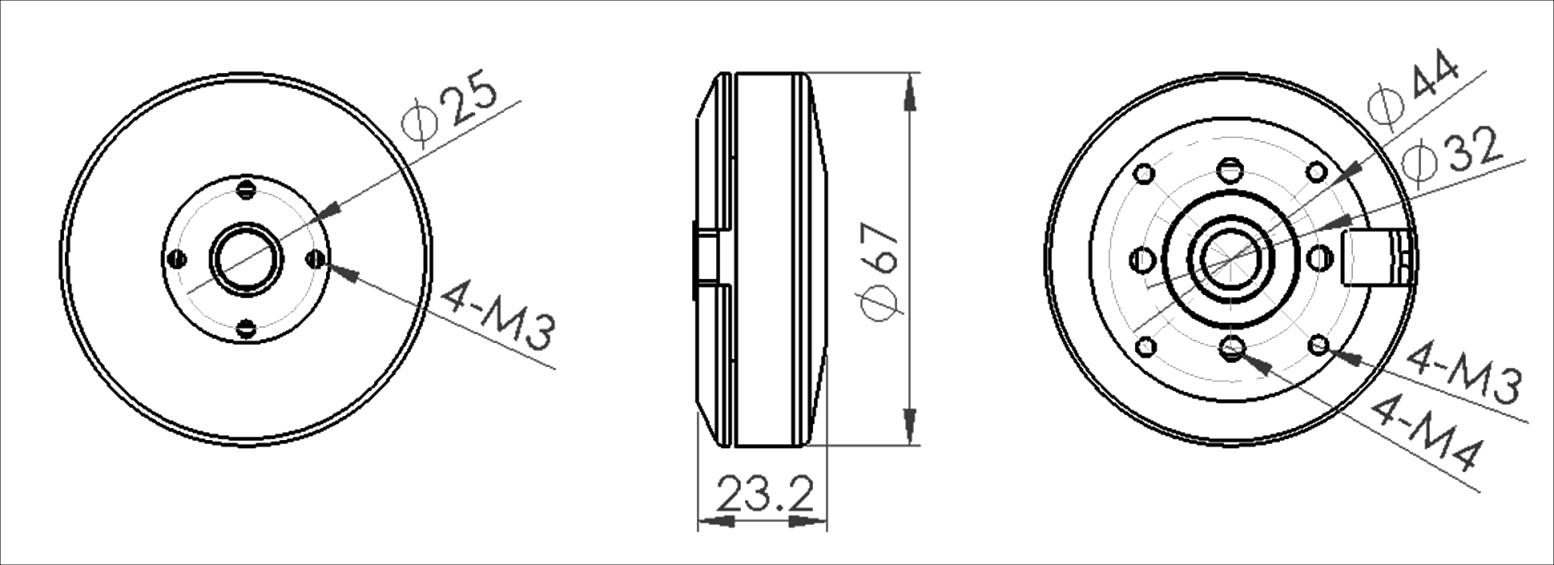

Motor Size：67*23.2mm
Shaft Size：Hollow shaft in 12.0mm
Resistance: 10.5ohm
Torque: 2200g&5V&0.6A/
KV/RPM: 63KV/126RPM
Working Temperature Range：-0℃~+80℃
Control Method：Use ESC And Adjust PWM signal For Control，PWM Adjustment Range 900- 2100US
Bell Material：7075-T6 Aluminum
Motor Type: External Rotor Brushless Motor,Three-phase Motor
