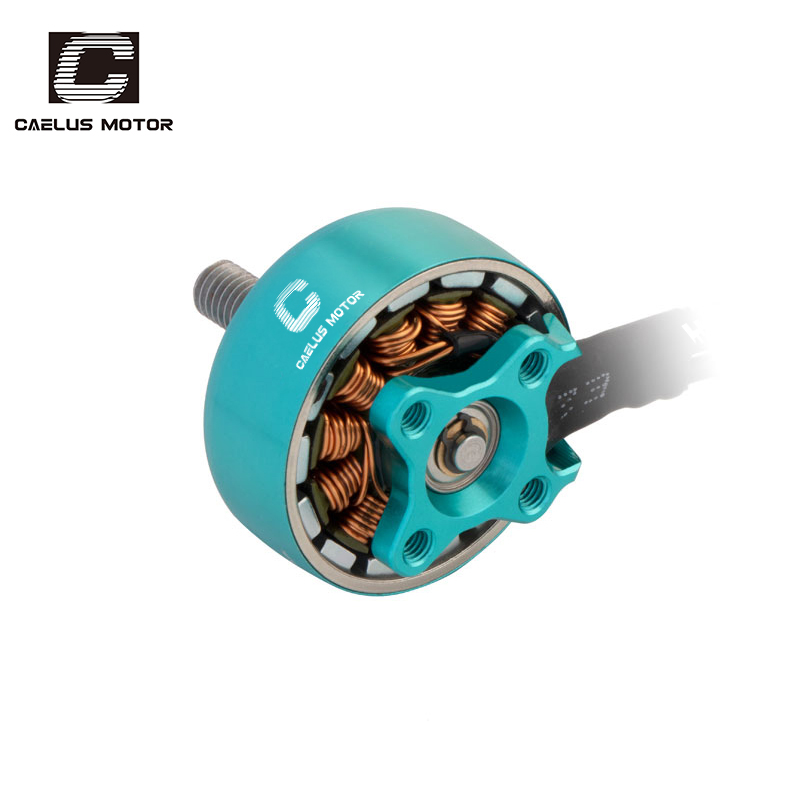

Fury-Apex II 2207.5 - Image 2

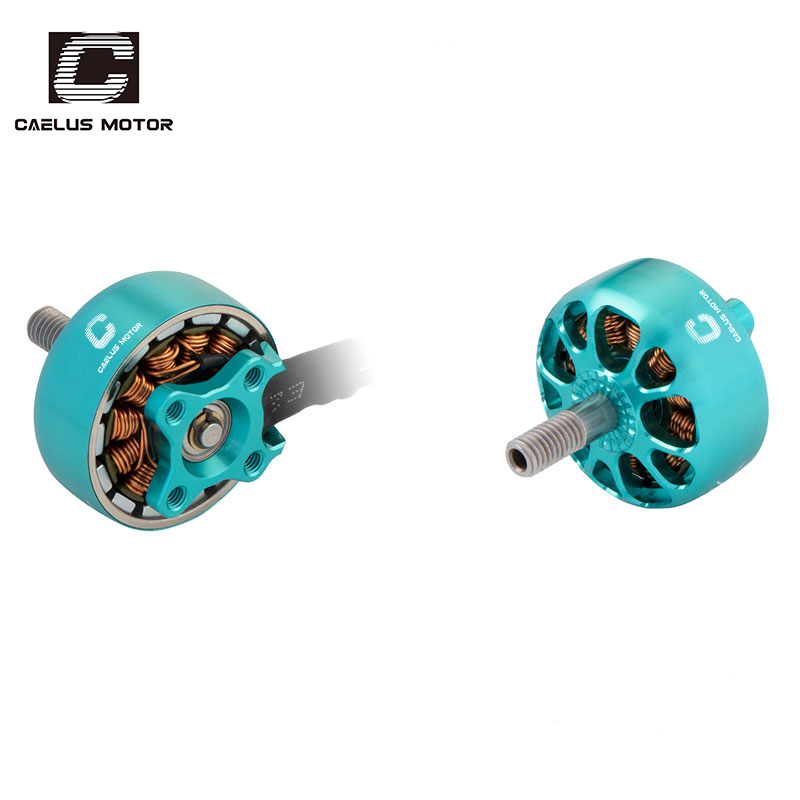

Fury-Apex II 2207.5 - Image 3

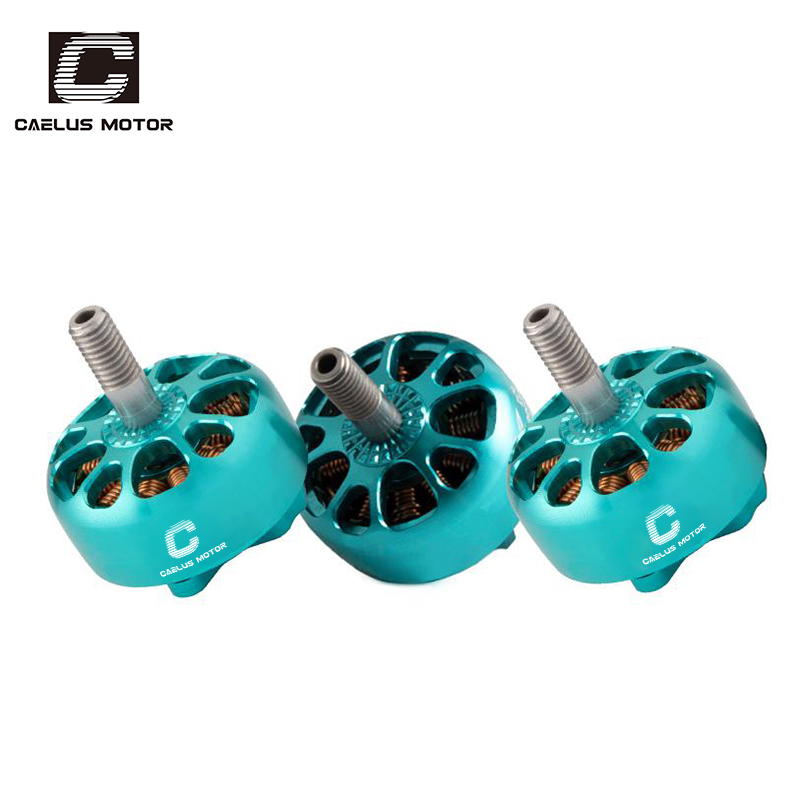

Fury-Apex II 2207.5 - Image 4

Fury-Apex II 2207.5

High-performance 5-inch FPV racing drone motor

· Ample power reserve
· Good reliability
· Excellent responsiveness
· Precise throttle linearity



This motor provides virtually unlimited power reserves and precise control for 5-inch racing and complex freestyle maneuvers. It strikes a perfect balance between power, responsiveness, weight, and heat generation. It’s not designed for long flight time or ultralight weight, but rather as the ultimate tool for maximizing flying pleasure and competitive performance.



Specifictaion
Weight:  36g (including the cables)

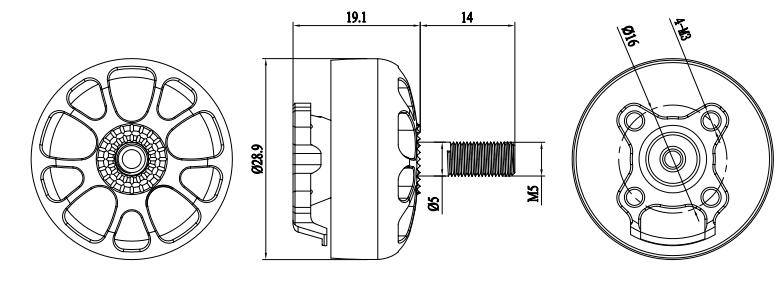

Motor Size: 28.9x 33.1mm
Stator Diameter:  22mm
Stator Height:  7mm
Shaft Diameter:  3mm
Mounting Screw Pattern:  16x16mm(M3*4)
Configuration:  12N14P
Motor Cable:  20#AWG 150mm
FA2207.5 RC  Motor  FA2207.5-2500KV Motor  FA2207.5-2750KV Motor
Max thrust：1619g（6S/GF6040 3R） Max thrust：1500g（4S/GF5040 3R） Max thrust：1397g（4S/GF6045 2R）
Volts：DC16~25.2 V/Li-Po(3-6S) Volts：DC11.1~16.8 V/Li-Po(3-4S) Volts：DC11.1~16.8 V/Li-Po(3-4S)
No Load Current/Maximum Load Curren：0.95A/33.47A  No Load Current/Maximum Load Curren：1.54A/33.74A No Load Current/Maximum Load Curren：1.71A/34.48A
No Load Speed(RPM):0~1900PRM/1v  No Load Speed(RPM)：0~2500PRM/1v  No Load Speed(RPM)：0~2750PRM/1v
Maximum Power：792.2W  Maximum Power：677.5W  Maximum Power： 537.9W



ltem No. Prop Throttle Volts   Amps   Watts Thrust Efficiency Operating temperature(℃)
 (V) (A)  (W)  (g) (g/W)
FA2207.5  1900KV GF5040 2R 50% 23.94  6.22 148.9  515 3.46  54.5℃
60% 23.94  10.47 250.7  726 2.90
70% 23.75  15.49 367.9  947 2.57
80% 23.64  22.05 521.3  1211 2.32
90% 23.51  28.4 667.7  1411 2.11
100% 23.56  28.4 669.1  1406 2.10
FA2207.5  1900KV GF5047 3R 50% 23.67  7.7 182.3  577 3.17  67.4℃
60% 23.48  12.97 304.5  817 2.68
70% 23.45  18.6 436.2  1012 2.32
80% 23.10  26.1 602.9  1267 2.10
90% 23.18  35.83 830.5  1479 1.78
100% 23.16  35.43 820.6  1462 1.78
FA2207.5  1900KV GF5143 3R 50% 23.67  7.09 167.8  564 3.36  56.5℃
60% 23.48  11.76 276.1  791 2.86
70% 23.43  17.93 420.1  1018 2.42
80% 23.18  25.49 590.9  1281 2.17
90% 23.16  33.13 767.3  1492 1.94
100% 23.13  32.79 758.4  1470 1.94
FA2207.5  1900KV GF6040 3R 50% 24.00  7.7 184.8  661 3.58  94.5℃
60% 24.08  12.84 309.2  937 3.03
70% 23.97  18.26 437.7  1169 2.67
80% 23.75  25.09 595.9  1460 2.45
90% 23.56  33.94 799.6  1647 2.06
100% 23.67  33.47 792.2  1619 2.04
ltem No. Prop Throttle Volts   Amps   Watts Thrust Efficiency Operating temperature(℃)
 (V) (A)  (W)  (g) (g/W)
FA2207.5  2500KV GF5040 2R 50% 16.03  5.61 89.9  449 4.99  45.4℃
60% 16.23  9.46 153.5  611 3.98
70% 16.12  14.66 236.3  794 3.36
80% 15.90  19.41 308.6  959 3.11
90% 15.93  24.82 395.4  1108 2.80
100% 15.76  24.82 391.2  1109 2.84
FA2207.5  2500KV GF5047 3R 50% 16.14  7.03 113.5  504 4.44  52.1℃
60% 16.44  12.09 198.8  690 3.47
70% 15.95  18.06 288.1  876 3.04
80% 15.79  25.36 400.4  1050 2.62
90% 15.03  32.18 483.7  1202 2.49
100% 14.32  31.91 457.0  1190 2.60
FA2207.5  2500KV GF5143 3R 50% 16.31  6.35 103.6  482 4.65  53℃
60% 16.63  11 182.9  664 3.63
70% 15.87  16.84 267.3  869 3.25
80% 16.63  23.06 383.5  1041 2.71
90% 15.93  29.75 473.9  1196 2.52
100% 15.71  29.68 466.3  1195 2.56
FA2207.5  2500KV GF6040 3R 50% 16.31  6.76 110.3  559 5.07  54.7℃
60% 16.14  11.69 188.7  768 4.07
70% 16.03  17.66 283.1  1002 3.54
80% 16.85  24.01 404.6  1186 2.93
90% 16.44  30.83 506.8  1375 2.71
100% 14.87  30.56 454.4  1363 3.00
FA2207.5  2500KV GF5040 3R 50% 20.76  9.73 202.0  623 3.08  64.8℃
60% 20.71  14.89 308.4  854 2.77
70% 20.68  19.14 395.8  1051 2.66
80% 20.57  26.37 542.4  1291 2.38
90% 19.84  34.07 675.9  1521 2.25
100% 20.08  33.74 677.5  1500 2.21
FA2207.5  2500KV GF5047 3R 50% 20.82  12.77 265.9  691 2.60  80.3℃
60% 20.76  16.91 351.1  900 2.56
70% 20.27  24.41 494.8  1142 2.31
80% 19.49  34.28 668.1  1378 2.06
90% 19.50  43.22 842.8  1551 1.84
100% 19.40  42.88 831.9  1513 1.82
ltem No. Prop Throttle Volts   Amps   Watts Thrust Efficiency Operating temperature(℃)
 (V) (A)  (W)  (g) (g/W)
FA2207.5  2750KV GF5040 2R 50% 16.33  7.16 116.9  494 4.23  52.3℃
60% 16.66  11.82 196.9  676 3.43
70% 16.17  17.05 275.7  848 3.08
80% 16.09  22.86 367.8  1030 2.80
90% 16.28  29.14 474.4  1198 2.53
100% 15.93  28.94 461.0  1190 2.58
FA2207.5  2750KV GF5047 3R 50% 16.25  8.92 145.0  555 3.83  56℃
60% 16.42  14.73 241.9  740 3.06
70% 16.25  21.98 357.2  940 2.63
80% 16.09  29.07 467.7  1105 2.36
90% 16.66  36.91 614.9  1259 2.05
100% 14.89  36.57 544.5  1244 2.28
FA2207.5  2750KV GF5143 3R 50% 16.31  8.04 131.1  526 4.01  57.2℃
60% 16.31  13.51 220.3  721 3.27
70% 16.25  20.76 337.4  931 2.76
80% 15.25  26.57 405.2  1088 2.69
90% 15.65  34.01 532.3  1261 2.37
100% 15.71  33.67 529.0  1243 2.35
FA2207.5  2750KV GF6042 3R 50% 16.28  11.69 190.3  696 3.66  80.1℃
60% 16.36  17.99 294.3  908 3.09
70% 16.74  26.78 448.3  1080 2.41
80% 16.03  35.22 564.6  1215 2.15
90% 15.41  43.42 669.1  1317 1.97
100% 15.84  42.68 676.1  1284 1.90
FA2207.5  2750KV GF6040 3R 50% 16.96  8.65 146.7  602 4.10  65℃
60% 17.26  14.26 246.1  827 3.36
70% 16.50  21.17 349.3  1053 3.01
80% 16.17  27.32 441.8  1245 2.82
90% 16.01  35.02 560.7  1422 2.54
100% 15.60  34.48 537.9  1397 2.60

Notes: The test condition oftemperature is motor surface temperature in 100% throttle while the motor run 15 s.environment temperature 26℃
