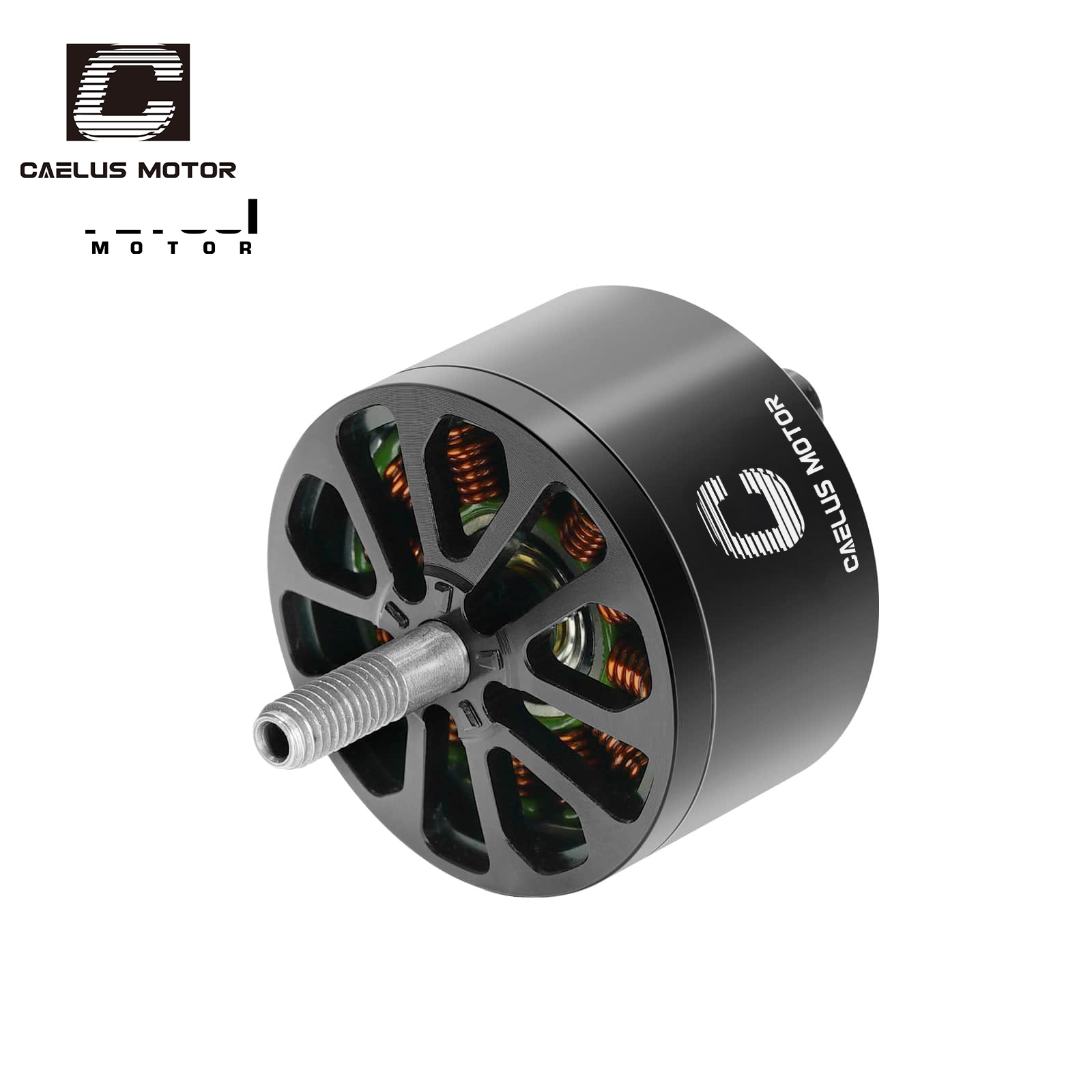

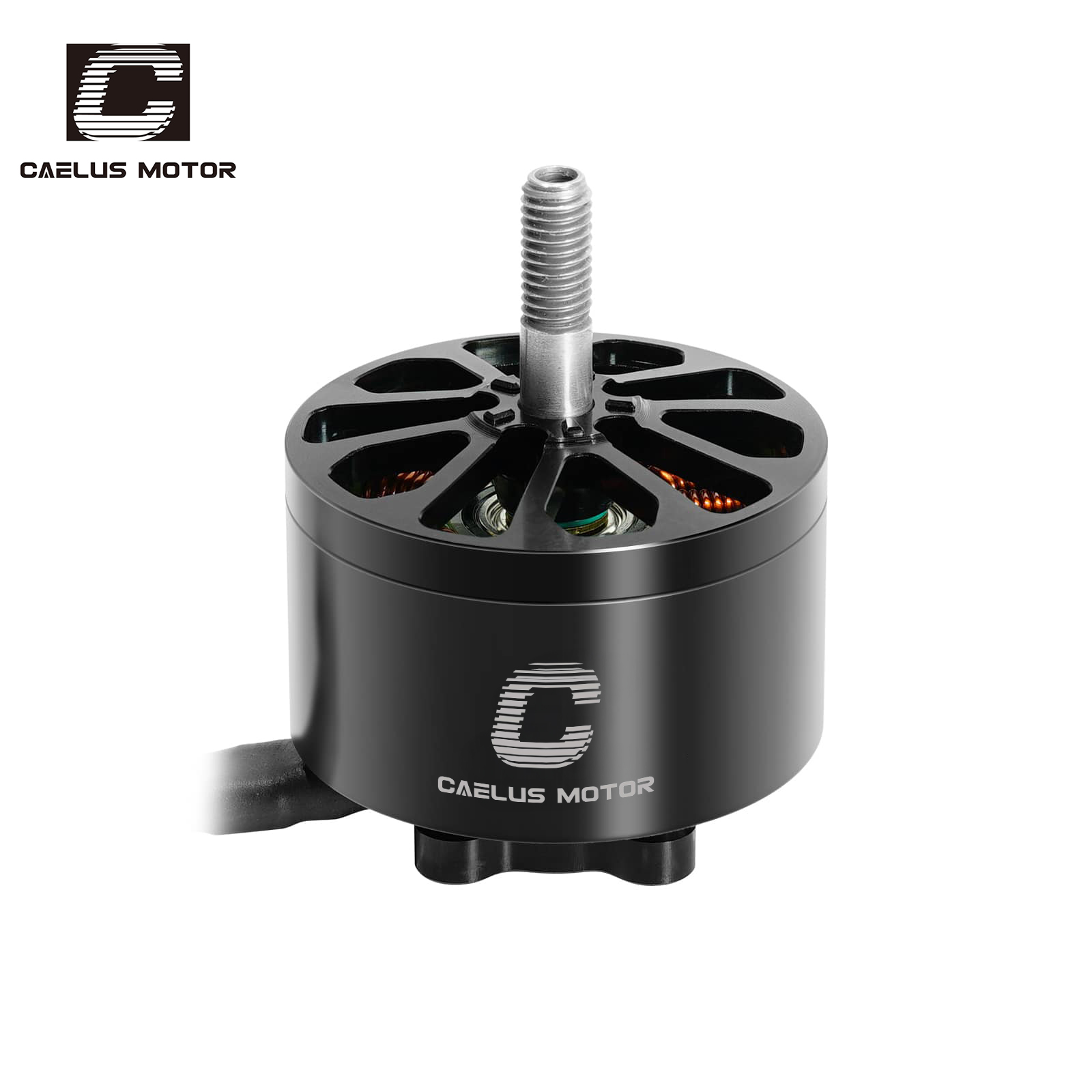

The FPV 3210 motor is a large-diameter, low-to-medium kV external rotor brushless motor that balances torque and speed potential. It improves performance by increasing stator diameter rather than height. The 3210 is a more niche, specialized option suitable for riders with larger diameters, different torque curves, potential high-speed capabilities, and those optimized for specific models (such as high-speed cruisers).
| Specification | |
| Weight: | 99.8g (including the cables) |
| Motor Size: | 38.3 x 27mm |
| Shaft Diameter: | 5.0mm |
| Motor Mount: | 19*19mm(M3*4) |
| Configuration: | 12N14P |
| Motor Cable: | 16#AWG 300mm |
| FA3210KV 800KV Motor | |
| Max thrust：3410g | |
| Volts：25V(6S) | |
| Suggested ESC: 50A~60A | |
| Maximum Power：1195W | |
| Suggested Prop: HQ9050-3R, HQ1050-3R prop | |
| Item No. | Prop | Throttle | Volts | Amps | Watts | Speed | Thrust | Efficiency | Operating |
| (V) | (A) | (W) | (RPM) | (g) | (g/W) | temperature(℃) | |||
| FA3210 800KV | HQ1050-3R | 50% | 25 | 8.6 | 215 | 7346 | 1123 | 5.22 | 57.3℃ |
| 60% | 25 | 13.9 | 347.5 | 8471 | 1552 | 4.47 | |||
| 70% | 25 | 19.7 | 492.5 | 9440 | 1961 | 3.98 | |||
| 80% | 25 | 27.1 | 677.5 | 10263 | 2411 | 3.56 | |||
| 90% | 25 | 37.2 | 930 | 11265 | 2968 | 3.19 | |||
| 100% | 25 | 47.8 | 1195 | 12127 | 3410 | 2.85 |
Notes:The test condition of temperature is motor surface temperature in 100%throttle while the motor run15 s.environment temperature 26℃
