It is designed specifically for large, heavy, long-endurance unmanned aerial vehicle platforms with 9-inch and larger propellers, serving the most demanding application scenarios. Focusing on three core objectives: extreme load capacity, ultra-long endurance, and industrial-grade reliability.
| Specification |
| Weight: 75.53g (including the cables) |

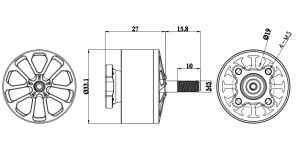

| Motor Size: 33.6 x 42.9mm |
| Shaft Diameter: 4.0mm |
| Motor Mount: 19*19mm(M3*4) |
| Configuration: 12N14P |
| Motor Cable: 18#AWG 220mm |
| FA2812KV 900KV Motor |
| Max thrust：4100g |
| Volts：24V(6S) |
| Suggested ESC: 50A~60A |
| Maximum Power：1395W |
| Suggested Prop: HQ9050-3R, GF1050-3R prop |
| ltem No. | Prop | Throttle | Volts | Amps (A) | Watts (W) | Speed | Thrust (g) | Efficiency (g/W) | Operating temperatur(℃) |
| (V) | （RPM） | ||||||||
| FA2812 900KV | GF8040-3R | 50% | 25 | 6.3 | 157.5 | 9905.0 | 805 | 5.11 | 62.6℃ |
| 60% | 25 | 10.5 | 262.5 | 11786.0 | 1163 | 4.43 | |||
| 70% | 25 | 15.7 | 392.5 | 13436.0 | 1556 | 3.96 | |||
| 80% | 25 | 22.3 | 557.5 | 15079.0 | 1967 | 3.53 | |||
| 90% | 25 | 29.7 | 742.5 | 16481.0 | 2392 | 3.22 | |||
| 100% | 25 | 34.9 | 872.5 | 17373.0 | 2652 | 3.04 | |||
| FA2812 900KV | GF8060-3R | 50% | 25 | 8.4 | 210.0 | 8969.0 | 1013 | 4.82 | 69.5℃ |
| 60% | 25 | 13.2 | 330.0 | 10939.0 | 1364 | 4.13 | |||
| 70% | 25 | 20.2 | 505.0 | 12573.0 | 1834 | 3.63 | |||
| 80% | 25 | 28.4 | 710.0 | 13973.0 | 2243 | 3.16 | |||
| 90% | 25 | 38.7 | 967.5 | 15259.0 | 2708 | 2.80 | |||
| 100% | 25 | 45.6 | 1140.0 | 16054.0 | 3098 | 2.72 | |||
| FA2812 900KV | HQ9050-3R | 50% | 25 | 10.1 | 252.5 | 8846.0 | 1123 | 4.45 | 75.9℃ |
| 60% | 25 | 15.7 | 392.5 | 10217.0 | 1554 | 3.96 | |||
| 70% | 25 | 24.3 | 607.5 | 11720.0 | 2084 | 3.43 | |||
| 80% | 25 | 34.9 | 872.5 | 13346.0 | 2630 | 3.01 | |||
| 90% | 25 | 46.6 | 1165.0 | 14182.0 | 3045 | 2.61 | |||
| 100% | 25 | 55.8 | 1395.0 | 14783.0 | 3456 | 2.48 | |||
| FA2812 900KV | GF1050-3R | 50% | 25 | 11.5 | 287.5 | 8683.0 | 1450 | 5.04 | 89.4℃ |
| 60% | 25 | 18.3 | 457.5 | 9959.0 | 1943 | 4.25 | |||
| 70% | 25 | 26.8 | 670.0 | 11277.0 | 2450 | 3.66 | |||
| 80% | 25 | 36.8 | 920.0 | 12639.0 | 2992 | 3.25 | |||
| 90% | 25 | 51.8 | 1295.0 | 13510.0 | 3651 | 2.82 | |||
| 100% | 25 | 62.1 | 1552.5 | 14124.0 | 4100 | 2.64 |
