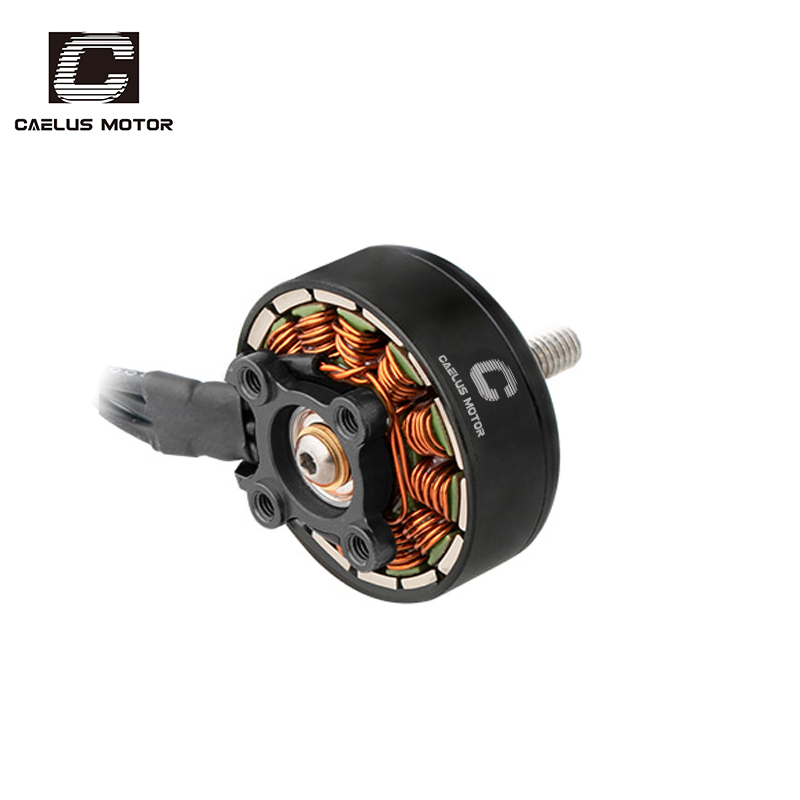

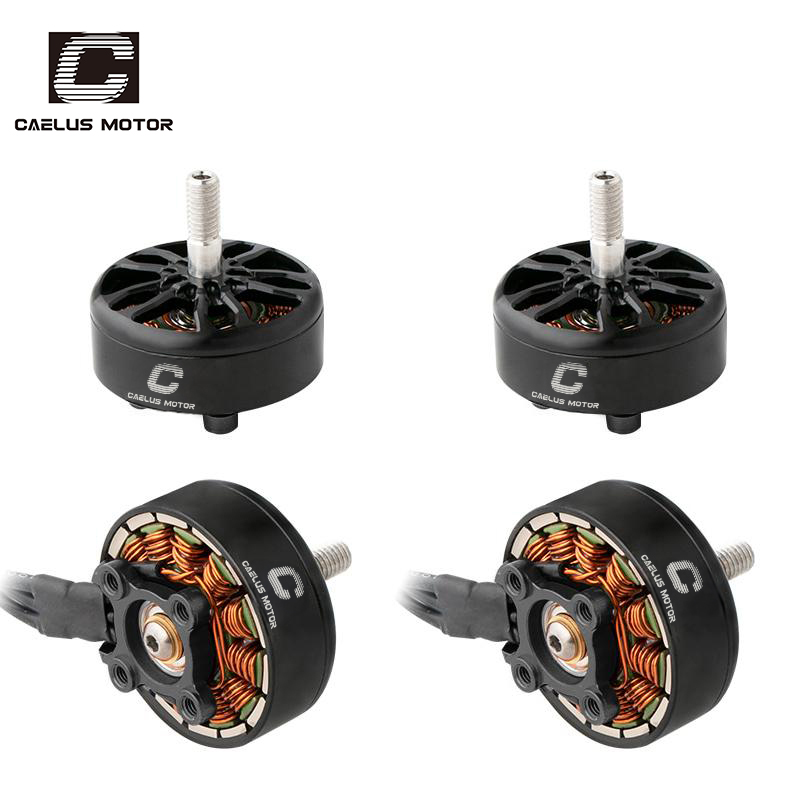

Fury-Apex 2808

This is a highly specialized and clearly defined “large-size, high-torque” heavy-duty motor, primarily targeting top-tier long-endurance, heavy-duty carrier, or industrial drones with motors 7 inches and larger. It provides ample torque reserves and load capacity for large unmanned aerial vehicle platforms, ensuring powerful, stable, reliable (and typically efficient) power output even under heavy loads or when pursuing extreme endurance.

Specification
Weight:	60.1g (including the cables)

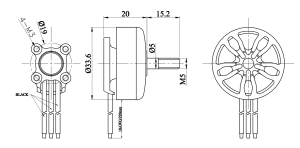

Motor Size:	33.6 x 36.2mm
Shaft Diameter:	4.0mm
Motor Mount:	1919mm(M24)
Configuration:	12N14P
Motor Cable:	18#AWG 220mm

FA2808KV 1100KV Motor
Max thrust：2196g
Volts：24V(6S)
Suggested ESC: 40A~60A
Maximum Power：934.9W
Suggested Prop: GF8040-3R inch prop

ltem NO.	Prop	Throttle	Volts	Amps	Watts	Speed	Thrust	Efficiency	Operating
ltem NO.	Prop	Throttle	(V)	(A)	(W)	(RPM)	(g)	(g/W)	temperature(℃)
FA2808 1100KV	GF7040-3R	50%	25.2	4.1	103.3	12053	461	4.46	76.1℃
		60%	25.2	6.7	168.8	14257	669	3.96
		70%	25.2	10.4	262.1	16181	930	3.55
		80%	25.2	16.5	415.8	17845	1294	3.11
		90%	25.2	24.4	614.9	19449	1719.6	2.8
		100%	25.2	29	730.8	20451	1952.8	2.67
FA2808 1100KV	GF7042-3R	50%	25.2	5.9	148.7	11814	635	4.27	82.3℃
		60%	25.2	9.4	236.9	13895	892	3.77
		70%	25.2	13.8	347.8	15856	1147	3.3
		80%	25.2	18.8	473.8	17474	1401	2.96
		90%	25.2	24.5	617.4	18928	1639	2.65
		100%	25.2	30.7	773.6	19664	1747	2.26
FA2808 1100KV	GF8040-3R	50%	25.2	8.5	214.2	10704	934	4.36	107℃
		60%	25.2	13.9	350.3	12446	1264	3.61
		70%	25.2	19.8	499	13934	1605	3.22
		80%	25.2	26.1	657.7	14022	1884	2.86
		90%	25.2	32.7	824	15812	2080	2.52
		100%	25.2	37.1	934.9	16272	2196	2.35
