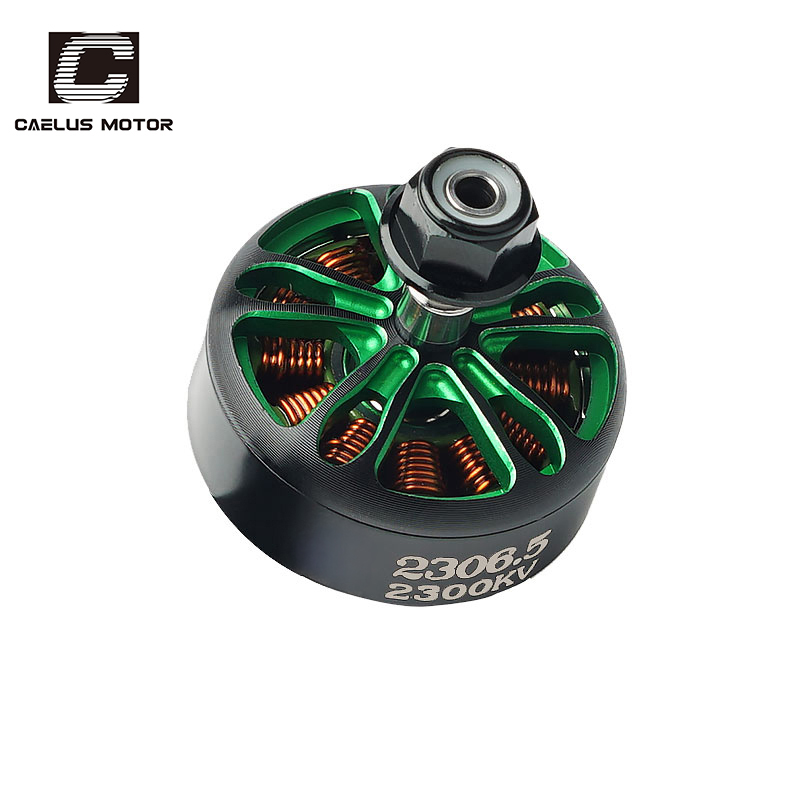

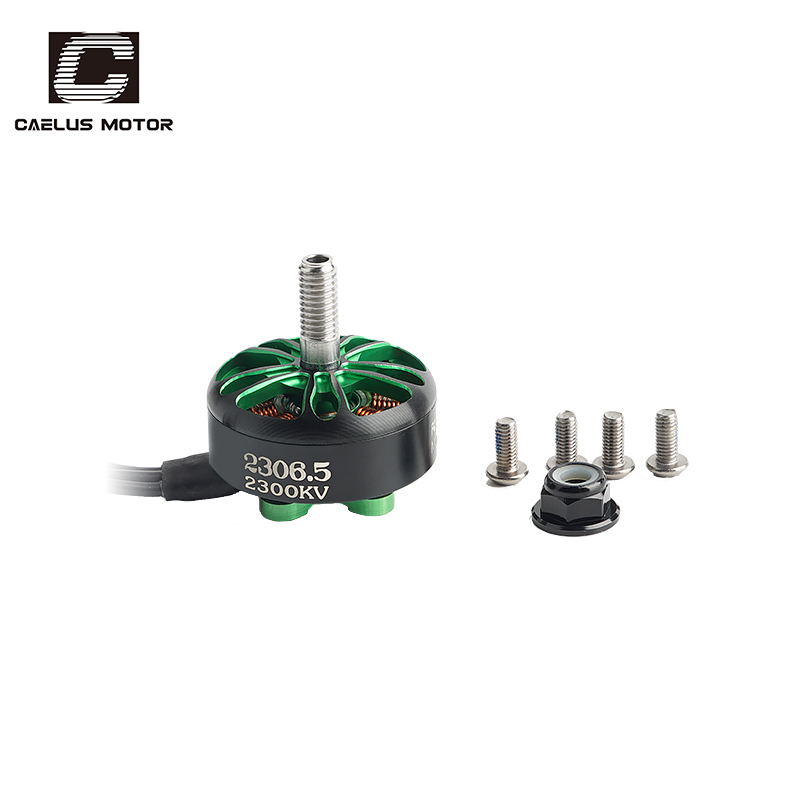

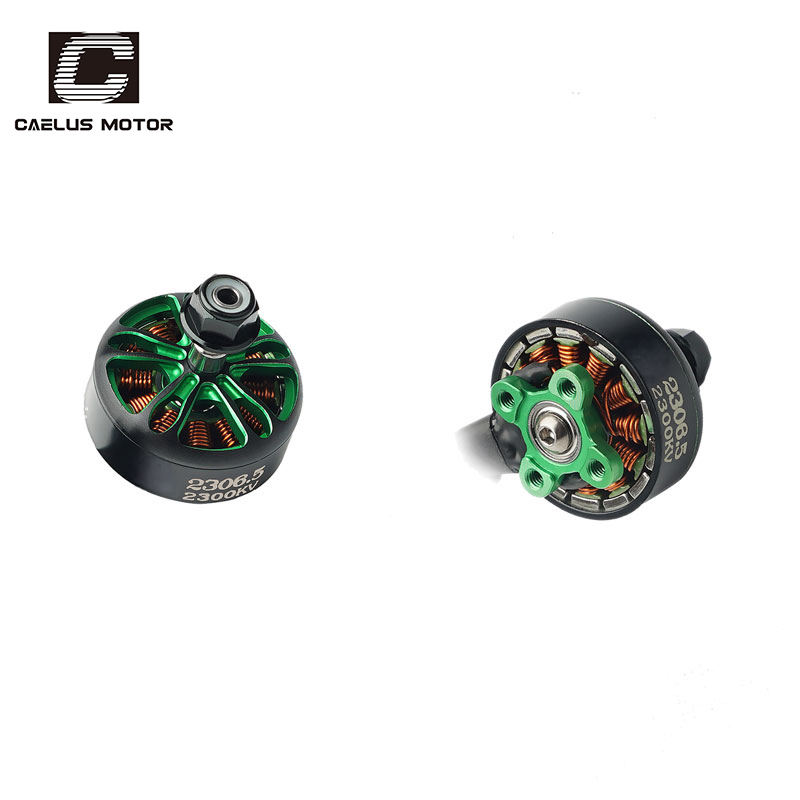

The design philosophy of the 2306.5 motor continues the idea of “large diameter and relatively low height. Its core objective is to provide extremely powerful low-speed torque and instantaneous explosive force at a relatively low rotational speed through the huge leverage effect generated by the super-large diameter.

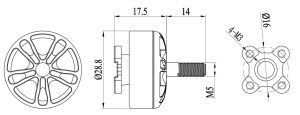

| Specification | |||
| Weight: | 36.5g (including the cables) | ||
| Motor Size: | 28.8 x 17.5mm | ||
| Stator Diameter: | 23mm | ||
| Stator Height: | 6.5mm | ||
| Shaft Diameter: | 4mm | ||
| Propeller Shaft Size: | M5 | ||
| Mounting Screw Pattern: | 16x16mm(M3*4) | ||
| Configuration: | 12N14P | ||
| Motor Cable: | 20#AWG 145mm | ||
| FA2306.5-1400KV Motor | FA2306.5-1900KV Motor | FA2306.5-2300KV Motor | FA2306.5-2550KV Motor |
| Max thrust：1741g(6S/GF7056 3R) | Max thrust：1961g(6S/GF6042 2R) | Max thrust：1472g(4S/GF6042 2R) | Max thrust：1718g(4S/HQ6045) |
| Input Voltage：DC7.4-24V(2-6S) | Input Voltage：DC7.4-24V(2-6S) | Input Voltage：DC7.4-16V(2-4S) | Input Voltage：DC7.4-16V(2-4S) |
| Current: 35.16A | Current: 51.32A | Current: 42.96A | Current: 47.34A |
| Suggested ESC: 30A~50A | Suggested ESC: 30A~60A | Suggested ESC: 30A~60A | Suggested ESC: 30A~60A |
| Maximum Power：843W | Maximum Power：1231W | Maximum Power：687W | Maximum Power：757W |
| Suggested Prop: 6~7 inch prop | Suggested Prop: 5~6 inch prop | Suggested Prop: 5~6 inch prop | Suggested Prop: 5~6 inch prop |
| ltem No. | Volts (V) | Prop | Throttle (%) | Current (A) | Power (W) | Thrust (g) | Efficiency (g/W) | Operating temperature(℃) |
| FA2306.5 1400kv | 24 | GF6045 2R | 50% | 5.07 | 121.7 | 503 | 4.13 | 58.1℃ |
| 60% | 7.97 | 191.3 | 733 | 3.83 | ||||
| 70% | 11.69 | 280.6 | 953 | 3.40 | ||||
| 80% | 16.84 | 404.2 | 1220 | 3.02 | ||||
| 90% | 22.86 | 548.6 | 1456 | 2.65 | ||||
| 100% | 26.03 | 611.2 | 1567 | 2.56 | ||||
| FA2306.5 1400kv | 24 | GF7056 3R | 50% | 8.78 | 206.2 | 796 | 3.86 | 75℃ |
| 60% | 14.12 | 331.5 | 1101 | 3.32 | ||||
| 70% | 19.48 | 457.4 | 1342 | 2.93 | ||||
| 80% | 25.56 | 600.1 | 1557 | 2.59 | ||||
| 90% | 31.51 | 739.9 | 1698 | 2.30 | ||||
| 100% | 35.16 | 843.8 | 1741 | 2.06 | ||||
| ltem No. | Volts (V) | Prop | Throttle (%) | Current (A) | Power (W) | Thrust (g) | Efficiency (g/W) | Operating temperature(℃) |
| FA2306.5 1900kv | 24 | GF5047 3R | 50% | 9.59 | 230.2 | 675 | 2.93 | 66.5℃ |
| 60% | 15.83 | 379.9 | 944 | 2.48 | ||||
| 70% | 21.51 | 516.2 | 1097 | 2.12 | ||||
| 80% | 26.57 | 637.7 | 1362 | 2.14 | ||||
| 90% | 42.85 | 1028.4 | 1734 | 1.69 | ||||
| 100% | 44.23 | 1061.5 | 1763 | 1.66 | ||||
| FA2306.5 1900kv | 24 | GF6042 2R | 50% | 11.01 | 264.2 | 834 | 3.16 | 78.5℃ |
| 60% | 16.98 | 407.5 | 1093 | 2.68 | ||||
| 70% | 20.36 | 488.6 | 1300 | 2.66 | ||||
| 80% | 25.02 | 600.5 | 1485 | 2.47 | ||||
| 90% | 49.23 | 1181.5 | 1891 | 1.60 | ||||
| 100% | 51.32 | 1231.7 | 1961 | 1.59 | ||||
| ltem No. | Volts (V) | Prop | Throttle (%) | Current (A) | Power (W) | Thrust (g) | Efficiency (g/W) | Operating temperature(℃) |
| FA2306.5 2300kv | 16 | GF5047 3R | 50% | 8.18 | 130.9 | 434 | 3.32 | 49.2℃ |
| 60% | 12.09 | 193.4 | 591 | 3.06 | ||||
| 70% | 17.25 | 276.0 | 762 | 2.76 | ||||
| 80% | 25.36 | 405.8 | 970 | 2.39 | ||||
| 90% | 32.86 | 525.8 | 1141 | 2.17 | ||||
| 100% | 37.86 | 605.8 | 1235 | 2.04 | ||||
| FA2306.5 2300kv | 16 | GF6042 2R | 50% | 9.73 | 155.7 | 511 | 3.28 | 59.2℃ |
| 60% | 14.93 | 238.9 | 764 | 3.20 | ||||
| 70% | 20.7 | 331.2 | 963 | 2.91 | ||||
| 80% | 28.8 | 460.8 | 1177 | 2.55 | ||||
| 90% | 37.66 | 602.6 | 1373 | 2.28 | ||||
| 100% | 42.95 | 687.2 | 1472 | 2.14 |
