The FA2207.5 motor is to pursue the ultimate “thrust – weight – response” comprehensive performance, providing nearly unlimited power reserve and precise control for 5-inch racing and complex fancy movements. It perfectly balances power, response, weight and heat generation, with no obvious weaknesses. For a 5-inch camera, choosing 2207.5 usually means “it won’t be wrong”. It is not designed for long flight duration or ultra-lightness, but is the ultimate tool created to maximize flight pleasure and competitive performance.
| Specification | ||
| Weight: | 36.0g (including the cables) | |

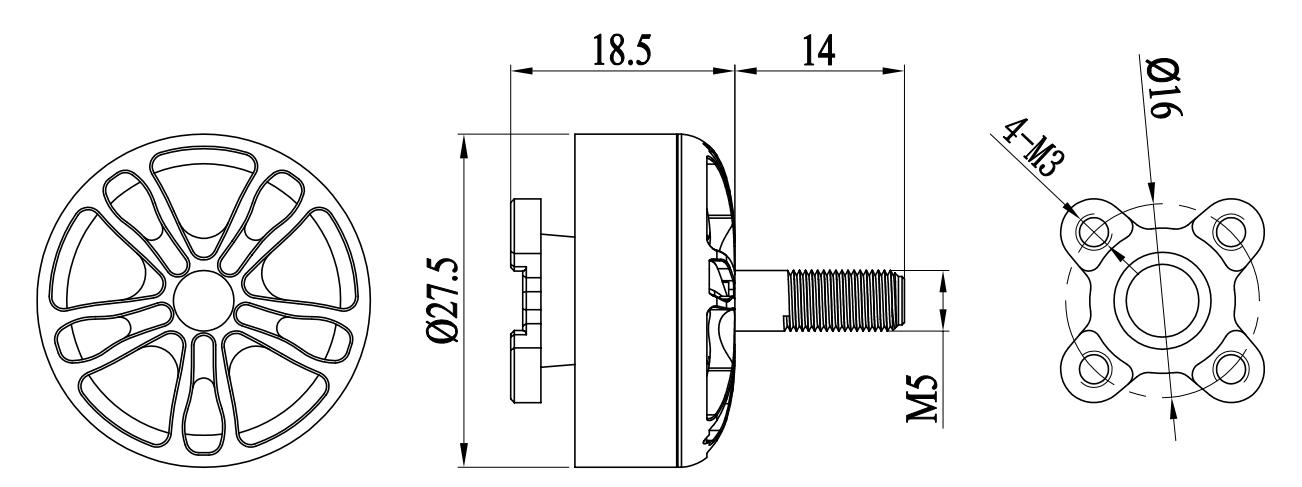

| Motor Size: | 27.5 x 18.5mm | |
| Stator Diameter: | 22mm | |
| Stator Height: | 7.5mm | |
| Shaft Diameter: | 4mm | |
| Propeller Shaft Size: | M5 | |
| Motor Mount: | 16*16mm(M3*4) | |
| Configuration: | 12N14P | |
| Motor Cable: | 20#AWG 150mm | |
| FA2207.5-1900KV Motor | FA2207.5-2500KV Motor | FA2207.5-2750KV Motor |
| Max thrust：1959g(6S/GF6045 2R) | Max thrust：1590g(4S/GF6045 2R) | Max thrust：1640g(4S/GF6045 2R) |
| Input Voltage：DC7.4-24V(2-6S) | Input Voltage：DC7.4-16V(2-4S) | Input Voltage：DC7.4-16V(2-4S) |
| Current: 45.38A | Current: 43.55A | Current: 56.93A |
| Suggested ESC: 30A~45A | Suggested ESC: 30A~45A | Suggested ESC: 30A~60A |
| Maximum Power：1065W | Maximum Power：709W | Maximum Power：910W |
| Suggested Prop: 5~6 inch prop | Suggested Prop: 5~6 inch prop | Suggested Prop: 5~6 inch prop |
| ltem No. | Volts | Prop | Throttle | Current (A) | Power | Thrust (g) | Efficiency (g/W) | Operating |
| (V) | (%) | (W) | temperature(℃) | |||||
| FA2207.5 1900KV | 24 | DAL50473R | 50% | 8.78 | 210.7 | 670 | 3.18 | 78.2℃ |
| 60% | 14.88 | 357.1 | 931 | 2.61 | ||||
| 70% | 20.22 | 485.3 | 1098 | 2.26 | ||||
| 80% | 29.07 | 697.7 | 1418 | 2.03 | ||||
| 90% | 38.76 | 930.2 | 1674 | 1.80 | ||||
| 100% | 40.65 | 954.5 | 1713 | 1.79 | ||||
| FA2207.5 1900KV | 24 | GF6045x2 | 50% | 10 | 234.8 | 811 | 3.45 | 108.1℃ |
| 60% | 16.57 | 389.1 | 1088 | 2.80 | ||||
| 70% | 20.29 | 476.4 | 1262 | 2.65 | ||||
| 80% | 28.26 | 663.5 | 1557 | 2.35 | ||||
| 90% | 42.49 | 997.7 | 1876 | 1.88 | ||||
| 100% | 45.38 | 1065 | 1959 | 1.84 | ||||
| ltem No. | Volts | Prop | Throttle | Current (A) | Power | Thrust (g) | Efficiency (g/W) | Operating |
| (V) | (%) | (W) | temperature(℃) | |||||
| FA2207.5 2500KV | 16 | DAL50473R | 50% | 8.58 | 139.8 | 494 | 3.53 | 59.3℃ |
| 60% | 14.19 | 231.2 | 690 | 2.99 | ||||
| 70% | 21.51 | 350.4 | 912 | 2.60 | ||||
| 80% | 30.63 | 499.0 | 1133 | 2.27 | ||||
| 90% | 37.6 | 612.5 | 1291 | 2.11 | ||||
| 100% | 38.94 | 634.3 | 1305 | 2.06 | ||||
| FA2207.5 2500KV | 16 | GF6045x2 | 50% | 9.8 | 159.6 | 700 | 4.38 | 68.2℃ |
| 60% | 15.9 | 259.0 | 927 | 3.58 | ||||
| 70% | 23.33 | 380.0 | 1158 | 3.05 | ||||
| 80% | 32.25 | 525.4 | 1380 | 2.63 | ||||
| 90% | 41.15 | 670.3 | 1540 | 2.30 | ||||
| 100% | 43.55 | 709.4 | 1590 | 2.24 | ||||
| ltem No. | Volts | Prop | Throttle | Current (A) | Power | Thrust (g) | Efficiency (g/W) | Operating |
| (V) | (%) | (W) | temperature(℃) | |||||
| FA2207.5 2750KV | 16 | DAL50473R | 50% | 12.23 | 195.7 | 584 | 2.98 | 65.3℃ |
| 60% | 19.34 | 309.4 | 801 | 2.59 | ||||
| 70% | 25.63 | 410.1 | 964 | 2.35 | ||||
| 80% | 36.57 | 585.1 | 1222 | 2.09 | ||||
| 90% | 50.15 | 802.4 | 1432 | 1.78 | ||||
| 100% | 51.53 | 824.5 | 1457 | 1.77 | ||||
| FA2207.5 2750KV | 16 | GF6045x2 | 50% | 14.05 | 224.8 | 648 | 2.88 | 83.5℃ |
| 60% | 22.32 | 357.1 | 952 | 2.67 | ||||
| 70% | 33.87 | 541.9 | 1238 | 2.28 | ||||
| 80% | 46.53 | 744.5 | 1480 | 1.99 | ||||
| 90% | 54.54 | 872.6 | 1596 | 1.83 | ||||
| 100% | 56.93 | 910.9 | 1640 | 1.80 |
