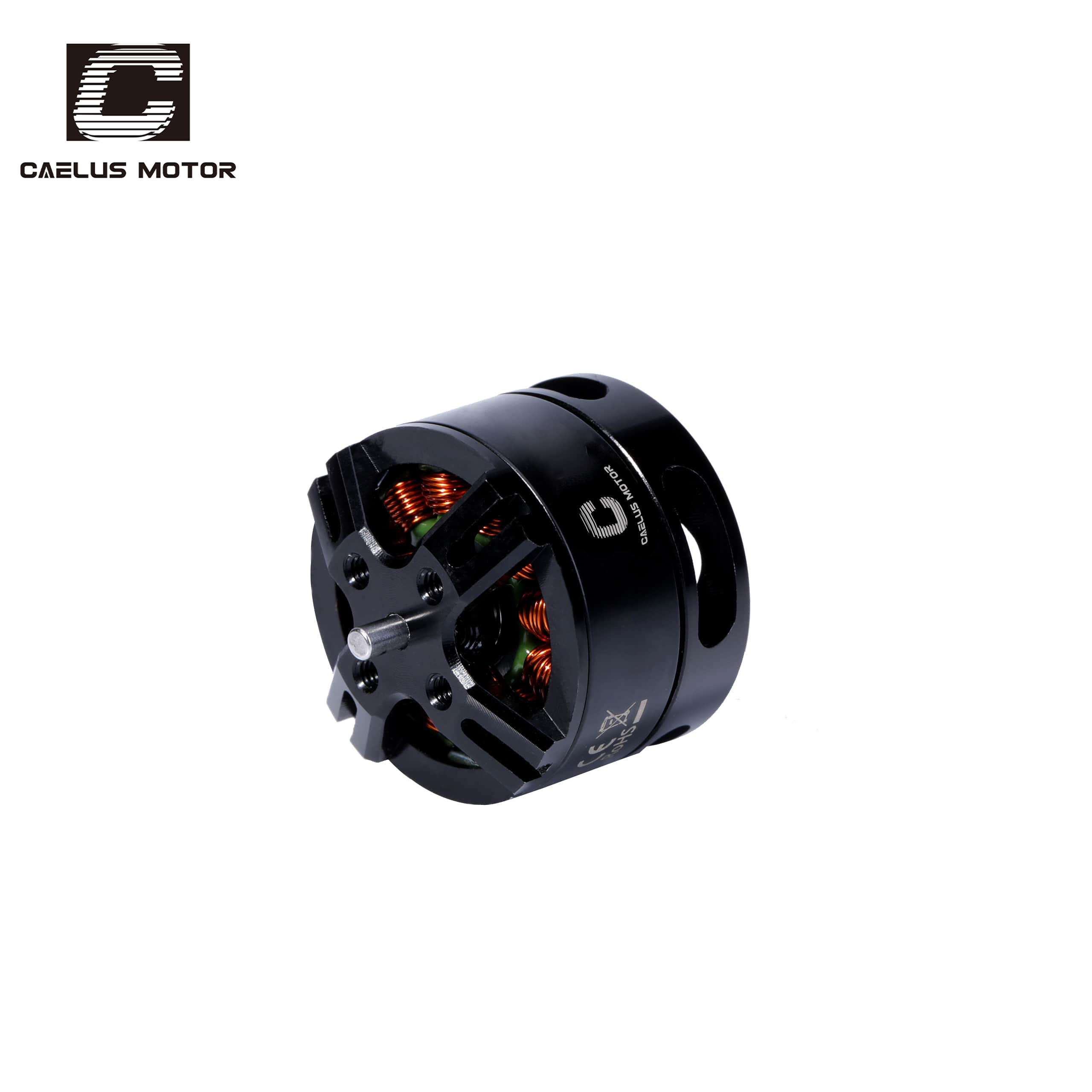

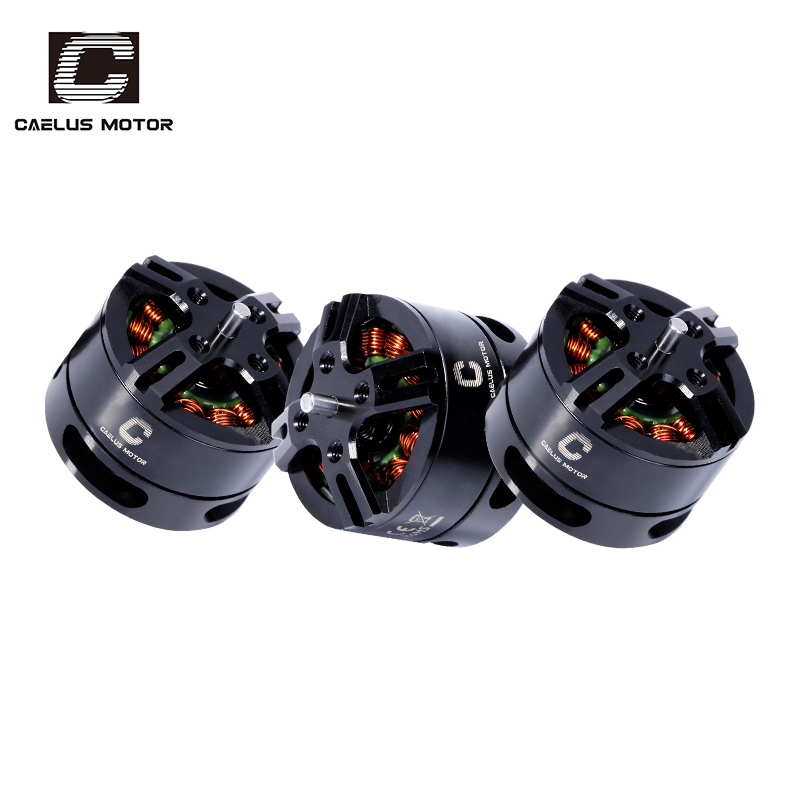

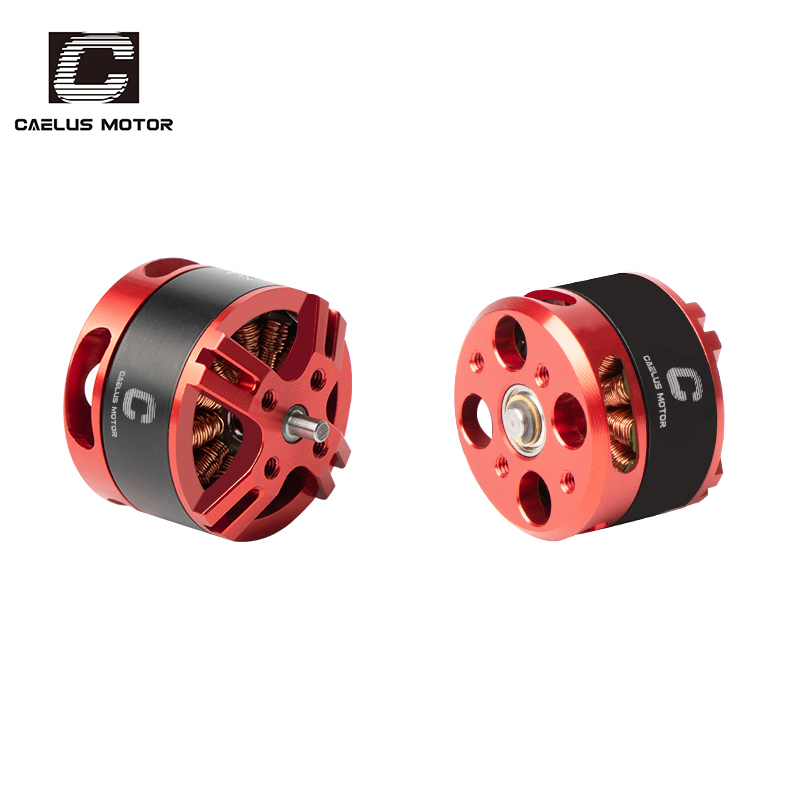

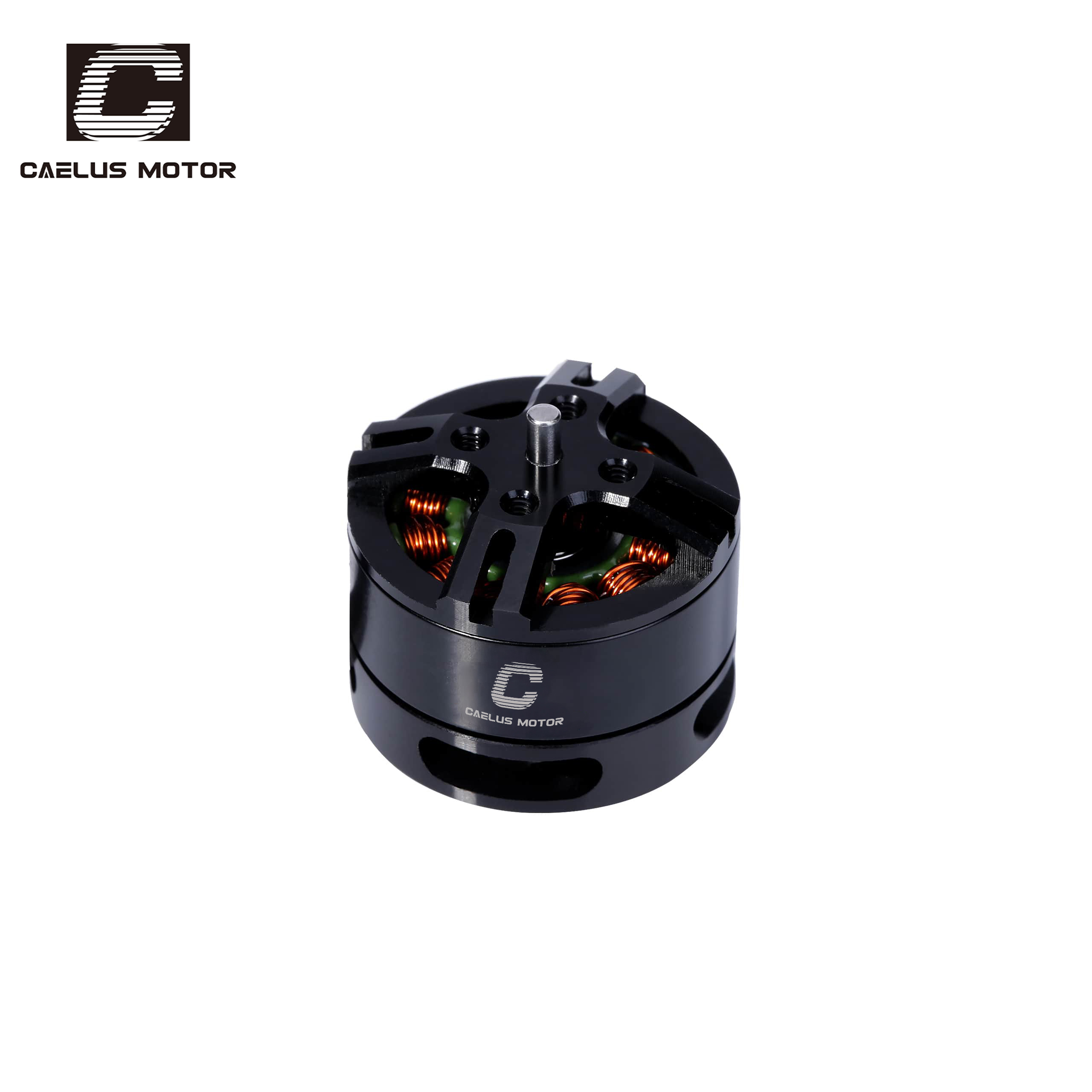

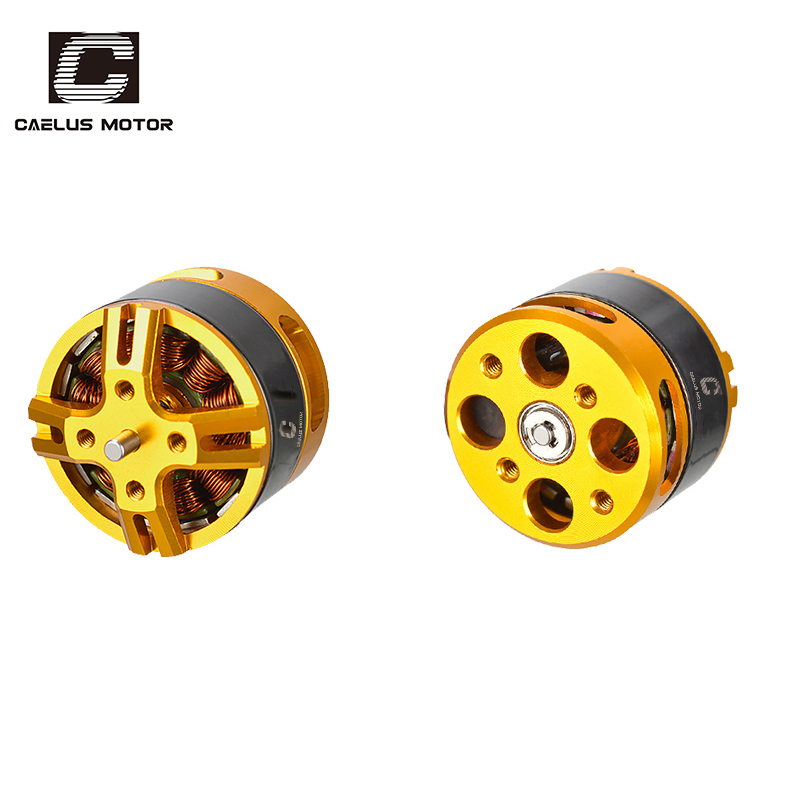

This motor is a “classic transitional model” in the development history of racing drones, bridging the early “aerial photography era” of multi-rotors and the “racing and freestyle” of modern high-performance FPV. It provides relatively efficient and reliable power for 3-5 inch propellers (5 inches was the mainstream at the time), but the overall performance is more moderate and focused on range than extreme power.
| Specification | ||
| Weight: | 23g (including the cables) | |
| Motor Size: | 23 x 21.5mm | |
| Stator Diameter: | 18mm | |
| Stator Height: | 6mm | |
| Shaft Diameter: | 3mm | |
| Mounting Screw Pattern: | 12x16mm(M3*4) | |
| Configuration: | 9N12P | |
| Motor Cable: | 22#AWG 150mm | |
| FK1806-1400KV Motor Specification | FK1806-2300KV Motor Specification | FK1806-2700KV Motor Specification |
| Max trust：440g(4S/GF6020) | Max thrust：521g(4S/GF6020) | Max thrust：690g(4S/GF5045T 3R) |
| Input Voltage：DC7.4-15.0V(2-4S) | Input Voltage：DC7.4-15.0V(2-4S) | Input Voltage：DC7.4-15.0V(2-4S) |
| Current: 5.4A | Current: 7.6A | Current: 16.8A |
| Suggested ESC: 10A~20A | Suggested ESC: 10A~20A | Suggested ESC: 10A~20A |
| Maximum Power：79.9W | Maximum Power：84.4W | Maximum Power：248.4W |
| Suggested Prop: 4~6 inch prop | Suggested Prop: 4~6 inch prop | Suggested Prop: 4~6 inch prop |
| ltem NO. | NO LOAD | ON LOAD | LOAD TYPE | |||||
| VOLTAGE | CURRENT | SPEED | CURRENT | Thrust | Power | EEP | Battery/prop | |
| (V) | (A) | (rpm) | (A) | (g) | (W) | % | ||
| FK1806 1400KV | 7.4 | 0.3 | 10560 | 1.8 | 121 | 13.3 | 9.1 | LiPoх2/6X2 |
| 2.8 | 188 | 20.7 | 9.1 | LiPoх2/7X2.4 | ||||
| 11.1 | 0.3 | 15850 | 3.4 | 250 | 37.7 | 6.6 | LiPoх3/6X2 | |
| 5.1 | 351 | 56.6 | 6.2 | LiPoх3/7X2.4 | ||||
| 14.8 | 0.4 | 21130 | 4.2 | 335 | 62.2 | 5.4 | LiPoх4/5X3 | |
| 5.4 | 440 | 79.9 | 5.5 | LiPoх4/6X2 | ||||
| ltem NO. | NO LOAD | ON LOAD | LOAD TYPE | |||||
| VOLTAGE | CURRENT | SPEED | CURRENT | Thrust | Power | EEP | Battery/prop | |
| (V) | (A) | (rpm) | (A) | (g) | (W) | % | ||
| FK1806 2300KV | 7.4 | 0.6 | 17060 | 6.5 | 390 | 48.1 | 8.1 | LiPoх2/6X2 |
| 7.6 | 521 | 56.2 | 9.3 | LiPoх2/7X2.4 | ||||
| 11.1 | 0.6 | 25590 | 6.5 | 390 | 72.2 | 5.4 | LiPoх3/5X3 | |
| 7.6 | 521 | 84.4 | 6.2 | LiPoх3/6X2 | ||||
| ltem NO. | NO LOAD | ON LOAD | LOAD TYPE | |||||
| VOLTAGE | CURRENT | SPEED | CURRENT | Thrust | Power | EEP | Battery/prop | |
| (V) | (A) | (rpm) | (A) | (g) | (W) | % | ||
| FK1806 2700KV | 11.1 | 0.7 | 11.1 | 2 | 100 | 22.2 | 4.5 | LiPoх3/3545T |
| 4.7 | 200 | 52.2 | 3.8 | |||||
| 6.6 | 260 | 73.3 | 3.5 | |||||
| 1.9 | 100 | 21.1 | 4.7 | LiPoх3/4045T | ||||
| 4.5 | 200 | 50.0 | 4.0 | |||||
| 10.9 | 380 | 121.0 | 3.1 | |||||
| 2.8 | 200 | 31.1 | 6.4 | LiPoх3/5045T | ||||
| 7.3 | 400 | 81.0 | 4.9 | |||||
| 16.8 | 690 | 186.5 | 3.7 | |||||
| FK1806 2700KV | 14.8 | 0.8 | 14.8 | 1.6 | 100 | 23.7 | 4.2 | LiPoх4/3545T |
| 3.7 | 200 | 54.8 | 3.7 | |||||
| 9.7 | 430 | 143.6 | 3.0 | |||||
| 3.7 | 200 | 54.8 | 3.7 | LiPoх4/4045T | ||||
| 9.4 | 400 | 139.1 | 2.9 | |||||
| 15.5 | 570 | 229.4 | 2.5 | |||||
| 2.8 | 200 | 41.4 | 4.8 | LiPoх4/5045T | ||||
| 7.3 | 400 | 108.0 | 3.7 | |||||
| 16.8 | 690 | 248.6 | 2.8 | |||||
