The FA1408 motor lies in maximizing torque output by increasing the stator height within a compact size of 14mm in diameter, while maintaining a relatively high potential for rotational speed (KV value). It sacrificed the ultimate lightweight and ultra-long battery life for astonishing torque and continuous power output on a small-sized frame, It is an electric motor that does not compromise with the mainstream and is dedicated to providing unique driving pleasure.
| Specification | |
| Weight: | 15.9g (including the cables) |

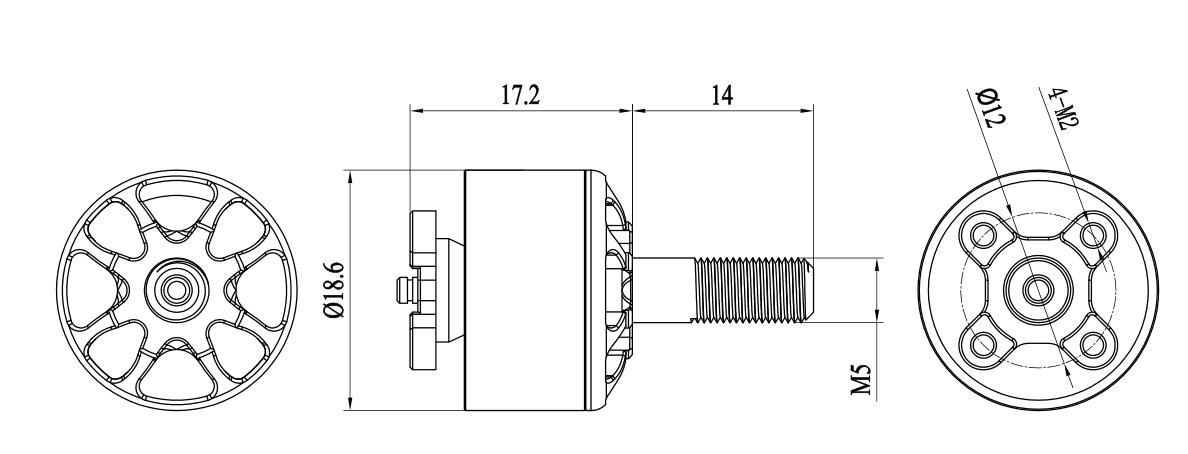

| Motor Size: | 18.6 x 17.2mm |
| Shaft Diameter: | 2.0mm |
| Stator Diameter: | 14mm |
| Stator Height: | 8mm |
| Prop Mount Shaft Dia.: | M5 |
| Motor Mount: | 12*12mm(M2*4) |
| Configuration: | 9N12P |
| Motor Cable: | 26#AWG 115mm |
| FA1408(M5)-2800KV Motor | FA1408(M5)-3650KV Motor |
| Max thrust：660g | Max thrust：650g |
| Volts：20V(5S) | Volts：16V(4S) |
| Suggested ESC: 10A~20A | Suggested ESC: 10A~20A |
| Maximum Power：339W | Maximum Power：365W |
| Suggested Prop: 4 inch prop | Suggested Prop: 4 inch prop |
| ltem No. | Vols | Prop | Throttle | Current | Power | Thrust (g) | Efficiency (g/W) | Operating |
| (V) | (%) | (A) | (W) | temperature(℃) | ||||
| FA1408 2800KV | 24 | GF3028-3R | 50% | 3.51 | 84.2 | 226 | 2.68 | 58.1℃ |
| 60% | 5.14 | 123.4 | 315 | 2.55 | ||||
| 70% | 7.97 | 191.3 | 412 | 2.15 | ||||
| 80% | 11.01 | 264.2 | 522 | 1.98 | ||||
| 90% | 13.89 | 333.4 | 600 | 1.80 | ||||
| 100% | 14.19 | 333.2 | 605 | 1.82 | ||||
| FA1408 2800KV | 24 | GF3056-3R | 50% | 3.51 | 82.4 | 223 | 2.71 | 56.2℃ |
| 60% | 5.07 | 119.0 | 316 | 2.65 | ||||
| 70% | 7.57 | 177.7 | 422 | 2.37 | ||||
| 80% | 10.88 | 255.5 | 534 | 2.09 | ||||
| 90% | 13.76 | 323.1 | 619 | 1.92 | ||||
| 100% | 13.99 | 333 | 623 | 1.87 | ||||
| FA1408 2800KV | 16 | GF4045-3R | 50% | 3.37 | 53.9 | 198 | 3.67 | 55.1℃ |
| 60% | 5.01 | 80.1 | 280 | 3.50 | ||||
| 70% | 7.84 | 125.3 | 372 | 2.97 | ||||
| 80% | 11.01 | 175.4 | 459 | 2.62 | ||||
| 90% | 13.45 | 212.4 | 518 | 2.44 | ||||
| 100% | 13.78 | 217.4 | 528 | 2.43 | ||||
| FA1408 2800KV | 20 | GF4045-3R | 50% | 4.59 | 91.6 | 278 | 3.03 | 81.3℃ |
| 60% | 7.03 | 139.3 | 387 | 2.78 | ||||
| 70% | 10.41 | 205.7 | 493 | 2.40 | ||||
| 80% | 14.12 | 278.2 | 604 | 2.17 | ||||
| 90% | 16.18 | 318.7 | 638 | 2.00 | ||||
| 100% | 17.25 | 339.0 | 660 | 1.95 | ||||
| ltem No. | Vols | Prop | Throttle | Current | Power | Thrust (g) | Efficiency (g/W) | Operating |
| (V) | (%) | (A) | (W) | temperature(℃) | ||||
| FA1408 3650KV | 16 | GF3028-3R | 50% | 3.51 | 57.2 | 162 | 2.83 | 44.3℃ |
| 60% | 5.07 | 82.6 | 230 | 2.78 | ||||
| 70% | 7.43 | 121.0 | 307 | 2.54 | ||||
| 80% | 10.61 | 172.8 | 393 | 2.27 | ||||
| 90% | 13.51 | 220.1 | 461 | 2.09 | ||||
| 100% | 13.56 | 220.9 | 461 | 2.09 | ||||
| FA1408 3650KV | GF3056-3R | 50% | 3.85 | 62.7 | 170 | 2.71 | 47.1℃ | |
| 60% | 5.41 | 88.1 | 241 | 2.73 | ||||
| 70% | 7.97 | 129.8 | 322 | 2.48 | ||||
| 80% | 11.42 | 186.0 | 414 | 2.23 | ||||
| 90% | 14.39 | 234.4 | 483 | 2.06 | ||||
| 100% | 14.59 | 237.7 | 486 | 2.04 | ||||
| FA1408 3650KV | GF4045-3R | 50% | 5.81 | 94.6 | 285 | 3.01 | 74℃ | |
| 60% | 9.46 | 154.1 | 394 | 2.56 | ||||
| 70% | 13.99 | 227.9 | 497 | 2.18 | ||||
| 80% | 18.4 | 299.7 | 593 | 1.98 | ||||
| 90% | 21.31 | 347.1 | 625 | 1.80 | ||||
| 100% | 22.39 | 364.7 | 650 | 1.78 |
