The Fury-Apex 1306 was an early 3-inch racing drone that injected “true FPV power,” freeing it from the slow feel of aerial photography and enabling it to perform basic racing and aerobatic maneuvers.
| Specification | |
| Weight: | 12g (including the cables) |

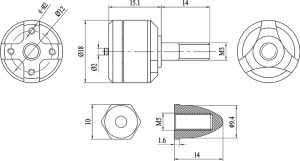

| Motor Size: | 18 x 15.1mm |
| Stator Diameter: | 13mm |
| Stator Height: | 6mm |
| Shaft Diameter: | 2.0mm |
| Mounting Screw Pattern: | 9x9mm(M2*4) |
| Configuration: | 9N12P |
| Motor Cable: | 26#Wire 150mm |
| FA1306-3100KV Motor | FA1306-4000KV Motor |
| Max thrust：339g(3S/GF5040) | Max thrust：395g(3S/GF5040) |
| Input Voltage：DC7.4-11.10V(1-2S) | Input Voltage：DC7.4-11.10V(1-2S) |
| Current: 9.86A | Current: 9.39A |
| Suggested ESC: 7A~12A | Suggested ESC: 7A~12A |
| Maximum Power：108.6W | Maximum Power：137.6W |
| Suggested Prop: 4~6 inch prop | Suggested Prop: 4~6 inch prop |
| ltem No. | Prop | Throttle | Volts
(V) |
Amps
(A) |
Watts
(W) |
Thrust
(g) |
Efficiency
(g/W) |
Operating temperature(℃) |
| FA1306 3100kv | GF4045 | 50% | 11.06 | 0.65 | 7.19 | 121 | 16.83 | 46℃ |
| 60% | 11.06 | 1.21 | 13.39 | 171 | 12.77 | |||
| 70% | 10.98 | 2.90 | 31.84 | 219 | 6.88 | |||
| 80% | 11.09 | 4.86 | 53.90 | 269 | 4.99 | |||
| 90% | 11.09 | 6.35 | 70.42 | 306 | 4.35 | |||
| 100% | 10.95 | 6.22 | 68.11 | 301 | 4.42 | |||
| FA1306 3100kv | GF5040 | 50% | 10.98 | 1.89 | 20.75 | 187 | 9.01 | 69.2℃ |
| 60% | 11.03 | 3.91 | 43.13 | 247 | 5.73 | |||
| 70% | 11.03 | 5.95 | 65.63 | 296 | 4.51 | |||
| 80% | 10.93 | 8.39 | 91.70 | 332 | 3.62 | |||
| 90% | 11.06 | 10.34 | 114.36 | 355 | 3.10 | |||
| 100% | 11.03 | 9.86 | 108.76 | 339 | 3.12 | |||
| FA1306 3100kv | GF6040 | 50% | 7.37 | 0.95 | 7.00 | 111 | 15.85 | 48.4℃ |
| 60% | 7.37 | 1.75 | 12.90 | 161 | 12.48 | |||
| 70% | 7.37 | 3.71 | 27.34 | 202 | 7.39 | |||
| 80% | 7.31 | 5.47 | 39.99 | 238 | 5.95 | |||
| 90% | 7.15 | 7.30 | 52.20 | 262 | 5.02 | |||
| 100% | 7.23 | 7.03 | 50.83 | 256 | 5.04 | |||
| ltem No. | Prop | Throttle | Volts
(V) |
Amps
(A) |
Watts
(W) |
Thrust
(g) |
Efficiency
(g/W) |
Operating temperature(℃) |
| FA1306 4000kv | GF3028 | 50% | 11.06 | 0.72 | 8.0 | 105 | 13.19 | 42℃ |
| 60% | 11.09 | 1.21 | 13.4 | 143 | 10.66 | |||
| 70% | 11.09 | 2.83 | 31.4 | 186 | 5.93 | |||
| 80% | 11.09 | 4.59 | 50.9 | 231 | 4.54 | |||
| 90% | 11.03 | 5.81 | 64.1 | 267 | 4.17 | |||
| 100% | 11.03 | 5.81 | 64.1 | 267 | 4.17 | |||
| FA1306 4000kv | GF3028 | 50% | 14.81 | 1.21 | 17.9 | 160 | 8.93 | 54.2℃ |
| 60% | 14.78 | 2.83 | 41.8 | 217 | 5.19 | |||
| 70% | 14.92 | 4.99 | 74.5 | 280 | 3.76 | |||
| 80% | 14.57 | 7.03 | 102.4 | 345 | 3.37 | |||
| 90% | 14.68 | 9.46 | 138.9 | 396 | 2.85 | |||
| 100% | 14.65 | 9.39 | 137.6 | 395 | 2.87 |
