Fury-Apex 1207
Fury-Apex 1207 - Image 2
Fury-Apex 1207 - Image 3

Fury-Apex 1207

FA1207 Bldc Motor RC Brushless Motor for FPV Racing Drone

· Suitable for 3.5-inch drone

· Outstanding handling feel

· Strong torque

· High efficiency



The Fury-Apex 1207 motor is a high-performance beast in the micro FPV field, specifically designed for seasoned players who refuse to compromise and seek the wild power of a 5-inch desktop drone on a palm-sized aircraft. It has emerged in recent years with the popularity of 3.5-inch and heavy-duty 3-inch models. It perfectly fills the gap between the insufficient torque of the 1306/1404 motor and the excessive weight of the 1507 motor, aiming to provide abundant and smooth power for microcomputers equipped with high-definition digital video transmission systems (such as DJI O3).

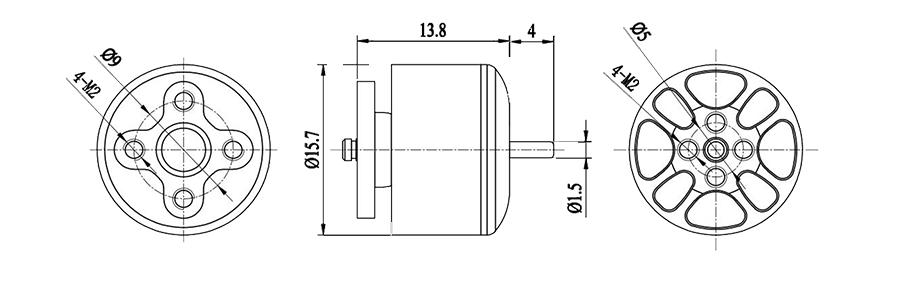

Specification
Weight:  10.3g (including the cables)
Motor Size:  15.7×13.8mm
Stator Diameter:  12mm
Stator Height:  7mm
Shaft Diameter:  2.0mm
Motor Mount:  9*9mm(M2*4)
Configuration:  9N12P
Motor Cable:  26#AWG 115mm
1207-2500KV Motor  1207-5200KV Motor 1207-6000KV Motor 1207-7000KV Motor
Max thrust：244g Max thrust：445g Max thrust：374g Max thrust：385g
Volts：16V(4S) Volts：16V(4S) Volts：16V(4S) Volts：12V(3S)
Suggested ESC: 10A~20A Suggested ESC: 10A~20A Suggested ESC: 10A~20A Suggested ESC: 10A~20A
Maximum Power：75.8W Maximum Power：325W Maximum Power：275W Maximum Power：291W
Suggested Prop: 3 inch prop Suggested Prop: 2 inch prop Suggested Prop: 2 inch prop Suggested Prop: 2 inch prop





ltem NO. Volts Prop Throttle Current Power Thrust  Efficiency    Operating
(V) (%)  (A) (W)  (g)  (g/W) temperature(℃)
FA1207 2500kv 16.1 GF3028 50% 1.08 17.4  85 4.89  31.5℃
16.13 60% 1.89 30.5  123 4.03
16.04 70% 2.7 43.3  163 3.76
16.04 80% 3.78 60.6  210 3.46
16.02 90% 4.73 75.8  246 3.25
16.02 100% 4.73 75.8  244 3.22
FA1207 2500kv 16.1 GF3035 50% 1.08 17.4  81 4.66  32.4℃
16.1 60% 1.76 28.3  118 4.16
16.04 70% 2.64 42.3  158 3.73
16.04 80% 3.78 60.6  204 3.36
16.02 90% 4.73 75.8  240 3.17
16.02 100% 4.8 76.9  240 3.12
ltem NO. Volts Prop Throttle Current Power Thrust  Efficiency    Operating
(V) (%)  (A) (W)  (g)  (g/W) temperature(℃)
FA1207 3100kv 16.1 GF3028 50% 2.16 34.8  120 3.45  50.8℃
16.1 60% 3.38 54.4  170 3.12
16.04 70% 4.73 75.9  220 2.90
16.02 80% 6.35 101.7  270 2.65
15.99 90% 7.84 125.4  314 2.50
15.96 100% 7.84 125.1  312 2.49
FA1207 3100kv 16.13 GF3035 50% 2.16 34.8  112 3.21  46.2℃
16.1 60% 3.38 54.4  162 2.98
16.1 70% 4.73 76.2  213 2.80
15.99 80% 6.35 101.5  271 2.67
16.02 90% 7.84 125.6  310 2.47
15.99 100% 7.84 125.4  309 2.46
ltem NO. Volts Prop Throttle Current Power Thrust  Efficiency    Operating
(V) (%)  (A) (W)  (g)  (g/W) temperature(℃)
FA1207 5200kv 12 GF2040-3R 50% 3.37 40.4  61 1.51  59.3℃
60% 4.72 56.6  91 1.61
70% 5.41 64.9  127 1.96
80% 6.96 83.5  164 1.96
90% 8.45 101.4  194 1.91
100% 8.65 103.8  195 1.88
FA1207 5200kv 12 GF2540-3R 50% 4.86 60.8  118 1.94  67.1℃
60% 6.35 80.0  166 2.07
70% 8.99 111.5  222 1.99
80% 11.76 146.4  275 1.88
90% 14.59 180.5  317 1.76
100% 14.80  183.1  320 1.75
FA1207 5200kv 12 GF3035-3R 50% 5.34 67.5  156 2.31  79.3℃
60% 7.7 97.3  212 2.18
70% 10.68 133.2  276 2.07
80% 14.32 177.4  339 1.91
90% 16.88 208.3  376 1.81
100% 17.39 213.9  383 1.79
FA1207 5200kv 16 GF2040-3R 50% 6.49 103.8  182 1.75  104.6℃
60% 9.46 151.4  254 1.68
70% 12.91 206.6  328 1.59
80% 16.64 266.2  400 1.50
90% 19.45 311.2  428 1.38
100% 20.29 324.6  445 1.37
ltem NO. Volts Prop Throttle Current Power Thrust  Efficiency    Operating
(V) (%)  (A) (W)  (g)  (g/W) temperature(℃)
FA1207 6000kv 12 GF2040-3R 50% 5.06 60.7  81 1.33  71.4℃
60% 6.22 74.6  117 1.57
70% 8.24 98.9  162 1.64
80% 10.41 124.9  205 1.64
90% 12.6 151.2  240 1.59
100% 12.77 153.2  241 1.57
FA1207 6000kv 12 GF2540-3R 50% 6.55 78.6  138 1.76  84.3℃
60% 9.46 113.5  195 1.72
70% 12.91 154.9  259 1.67
80% 16.51 198.1  319 1.61
90% 19.86 238.3  356 1.49
100% 20.43 245.2  363 1.48
FA1207 6000kv 16  GF2040-3R 50% 6.76 108.2  133 1.23  98.9℃
60% 9.26 148.2  192 1.30
70% 11.96 191.4  257 1.34
80% 14.89 238.2  323 1.36
90% 18.26 292.2  373 1.28
100% 18.33 275.0  374 1.36
ltem NO. Volts Prop Throttle Current Power Thrust  Efficiency    Operating
(V) (%)  (A) (W)  (g)  (g/W) temperature(℃)
FA1207 7000kv 8  GF2040-3R 50% 4.05 32.4  43 1.33  55.8℃
60% 5.26 42.1  66 1.57
70% 6.22 49.8  92 1.85
80% 7.7 61.6  119 1.93
90% 9.39 75.1  142 1.89
100% 9.46 75.7  142 1.88
FA1207 7000kv 8  GF2540-3R 50% 5 40.0  86 2.15  58.6℃
60% 7.09 56.7  122 2.15
70% 9.59 76.7  163 2.12
80% 12.3 98.4  197 2.00
90% 15.02 120.2  233 1.94
100% 15.02 120.2  232 1.93
FA1207 7000kv 8  GF3035-3R 50% 5.95 47.6  112 2.35  62.8℃
60% 8.58 68.6  156 2.27
70% 11.28 90.2  201 2.23
80% 14.86 118.9  248 2.09
90% 17.86 142.9  281 1.97
100% 17.99 143.9  284 1.97
FA1207 7000kv 12 GF20403R 50% 6.01 72.1  95 1.32  78.2℃
60% 8.11 97.3  138 1.42
70% 10.47 125.6  186 1.48
80% 13.11 157.3  235 1.49
90% 15.83 190.0  275 1.45
100% 15.83 190.0  277 1.46
FA1207 7000kv 12  GF2540-3R 50% 8.38 100.6  161 1.60  96.9℃
60% 11.89 142.7  221 1.55
70% 15.63 187.6  286 1.52
80% 19.89 238.7  344 1.44
90% 23.3 279.6  376 1.34
100% 24.21 290.5  385 1.33
PACKAGE

Brushless motor *1,
M2x5mm*4
M2x7mm*8
