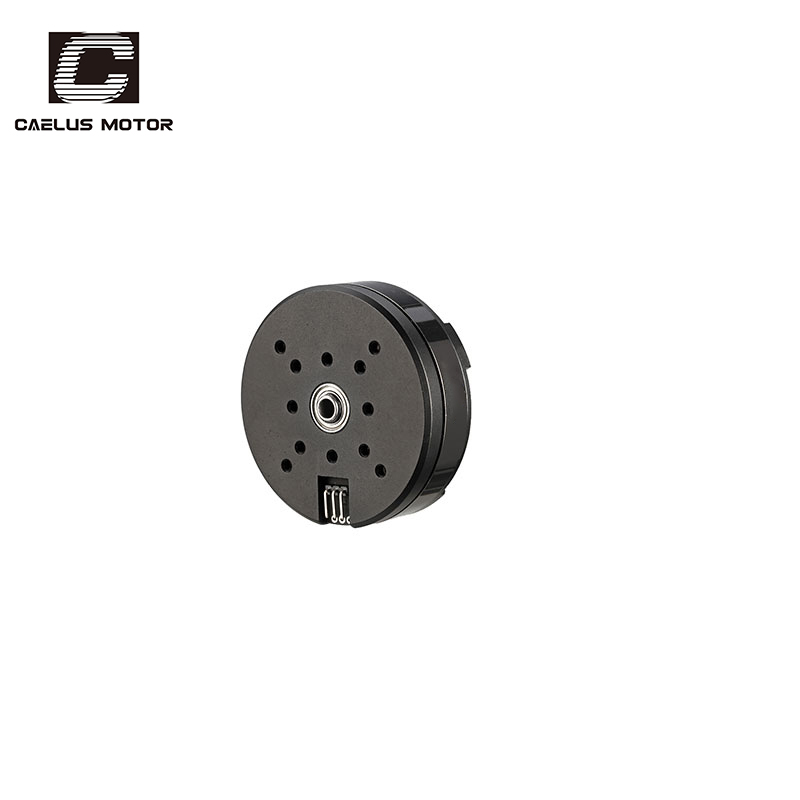

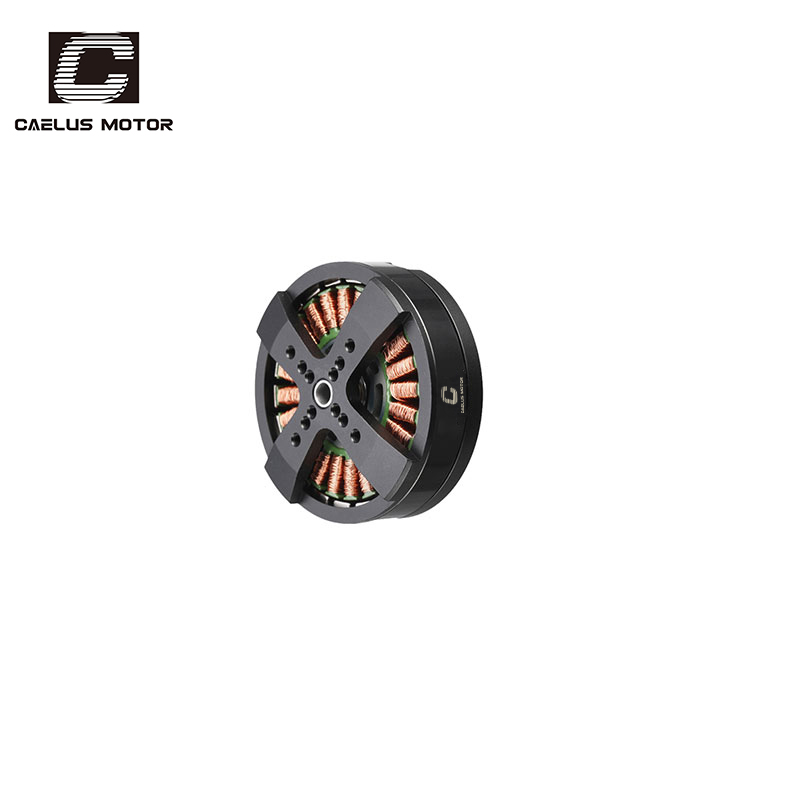

The description and features of the drone gimbal motor BGM5208-75. This motor is a high-performance brushless motor designed specifically for professional gimbals and drones. It is a large-sized, high-torque, low-speed, and high-precision brushless DC motor. It is not designed to drive propellers at high speeds but is specifically intended to drive camera gimbals for precise angle adjustments (pitch, roll, yaw) with extremely high stability and response speed. Its core feature is the combination of high torque from a large-sized stator and ultra-smooth and precise control capability from a multi-pole pair design, making it an ideal power core for stabilizing heavy and high-end imaging equipment.
| Item#: | BGM5208-75T | ||
| Motor Size(mm): | Ф63*24 | ||
| Stator Size(mm): | 52*8 | ||
| Weight(g): | 189 | ||
| ID of Hollow Shaft(mm): | 5mm or 12mm | ||
| Configuration | 24N22P | ||
| Motor Type: | Outrunner Brushless Motor | ||
| Resistance: | 15ohm | ||
| Voltage(V): | 12.8V | 16.8V | 24.2V |
| Max speed at no load(rpm: | 371 | 500 | 744 |
| Max Current: | 0.68A | 0.98A | 1.36A |
| Stalling Speed(rpm) | 233 | 187 | 237 |
| Stalling Torque | 0.15N.m | 0.237N.m | 0.37N.m |
