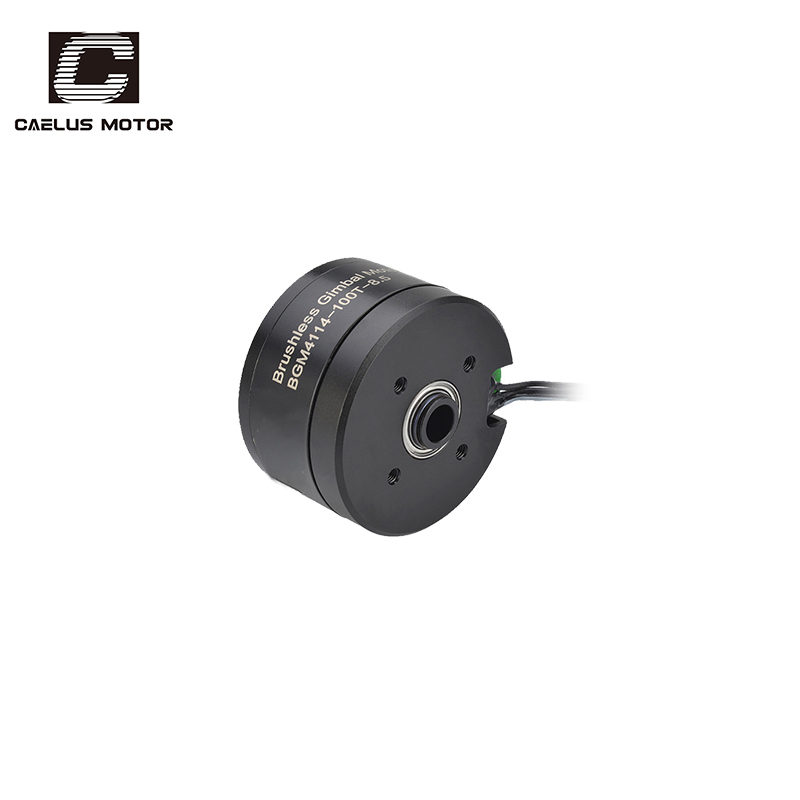

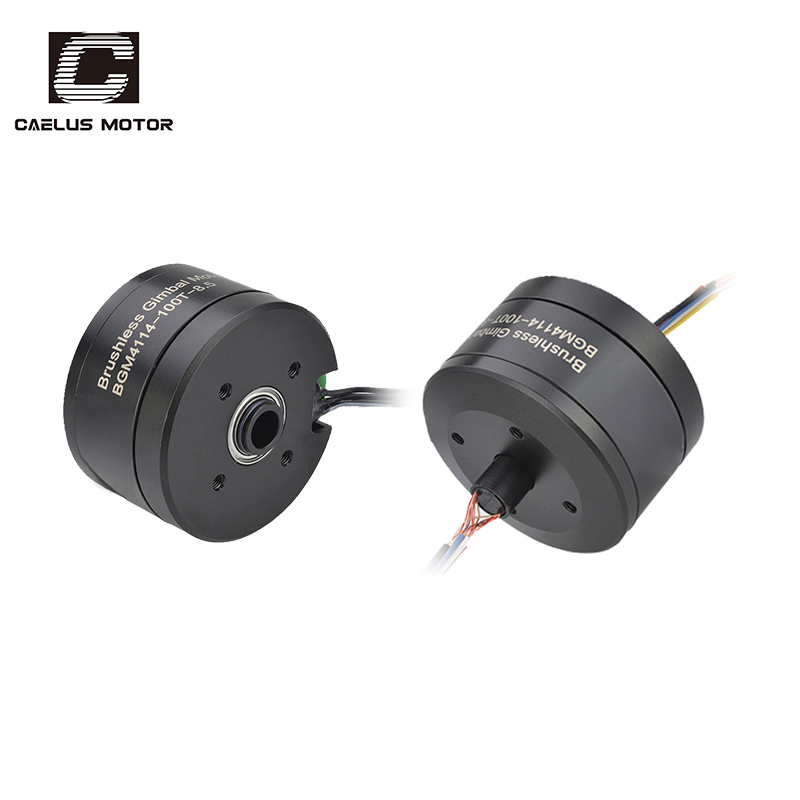

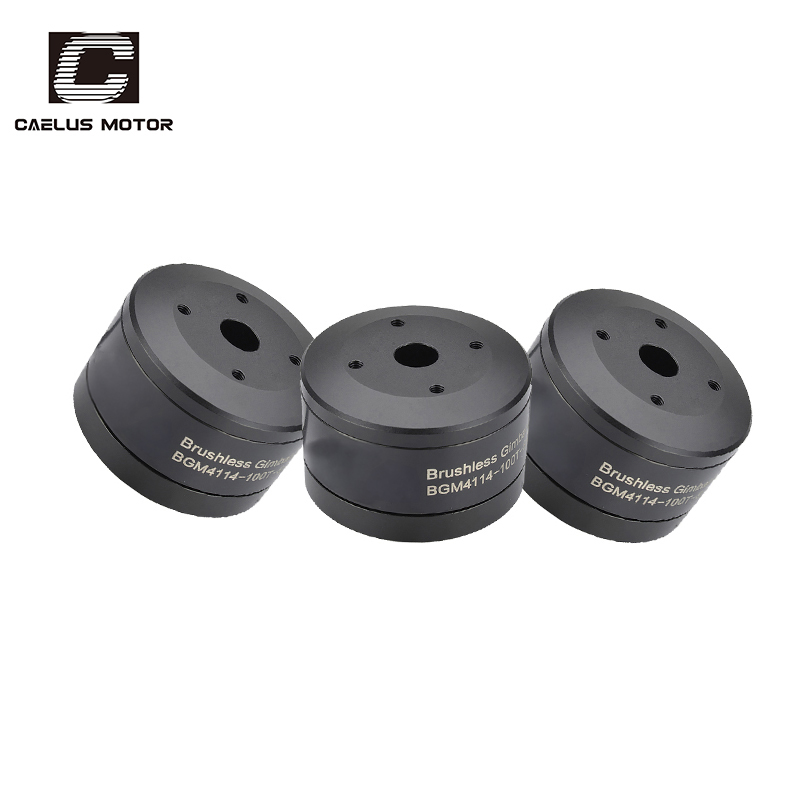

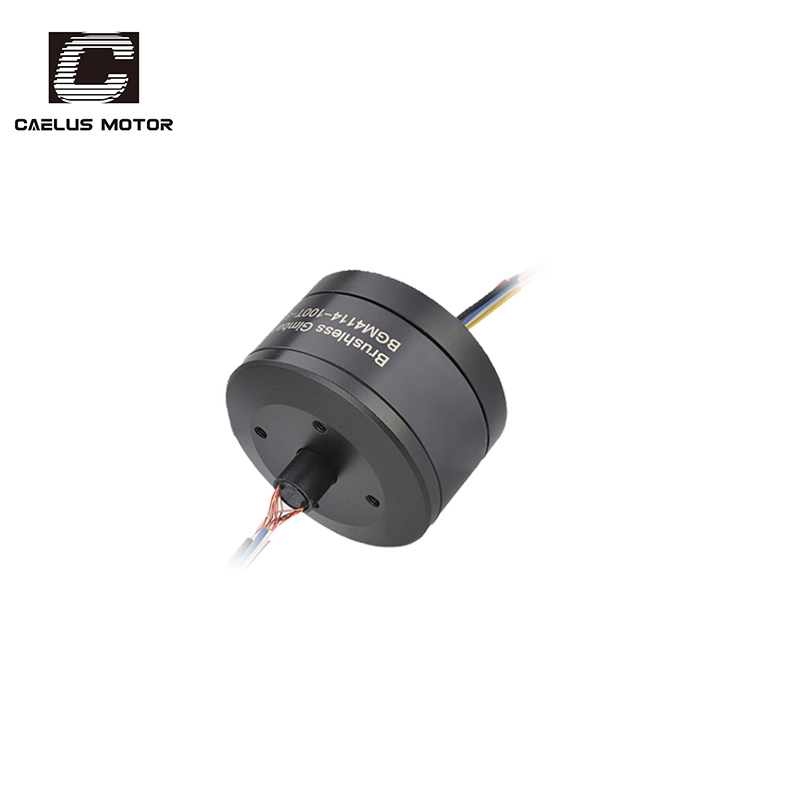

Caelus Gimbal Motor BGM4114-100T is designed for applications that go beyond the ordinary and challenge the physical limits – whether it’s suspending a multi-million-yuan movie lens for aerial photography in strong winds or maintaining the absolute stability of a hundred-kilogram sensor on a bumpy off-road vehicle. 4114: Stator size. This is the core change point. The 41 indicates that the stator outer diameter is 41mm (the same as the 4108 series), but the 14 indicates that the stator lamination thickness has reached an astonishing 14mm. This is the key to its performance leap. A thicker stator means a longer magnetic circuit and more space for copper wire filling, which can generate much stronger torque and power than the 4108 (8mm thick). Compared with the 4108-130T, the number of turns has been reduced to 100. This is usually to balance torque, speed and current while maintaining an extremely low KV value. Fewer turns mean a lower internal resistance, allowing a larger current to pass at the same voltage, which may result in higher peak torque and power output.
BGM4114-100T-8.5 Gimbal Motor Specification
Weight：136g

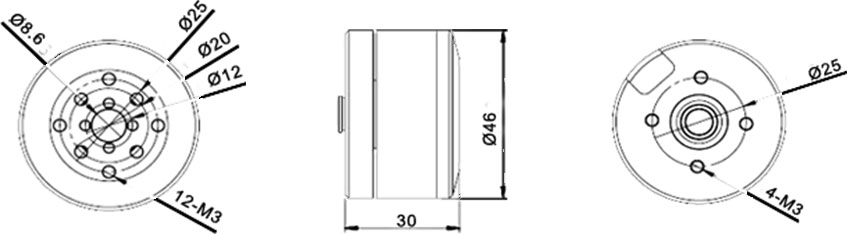

Motor Size：46*30mm
Shaft Size：Hollow shaft in 8.5mm
Resistance: 15.0ohm
Torque: 1000g&5V&0.46A
Working Temperature Range：-0℃~+80℃
Control Method：Use ESC And Adjust PWM signal For Control，PWM Adjustment Range 900- 2100US
Bell Material：7075-T6 Aluminum
Motor Type: External Rotor Brushless Motor,Three-phase Motor
