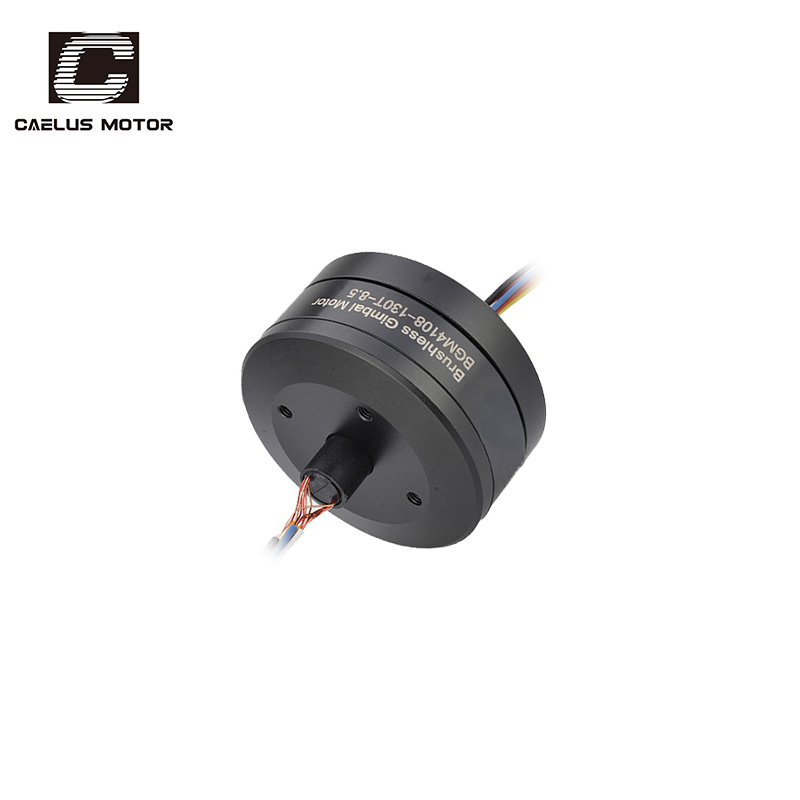

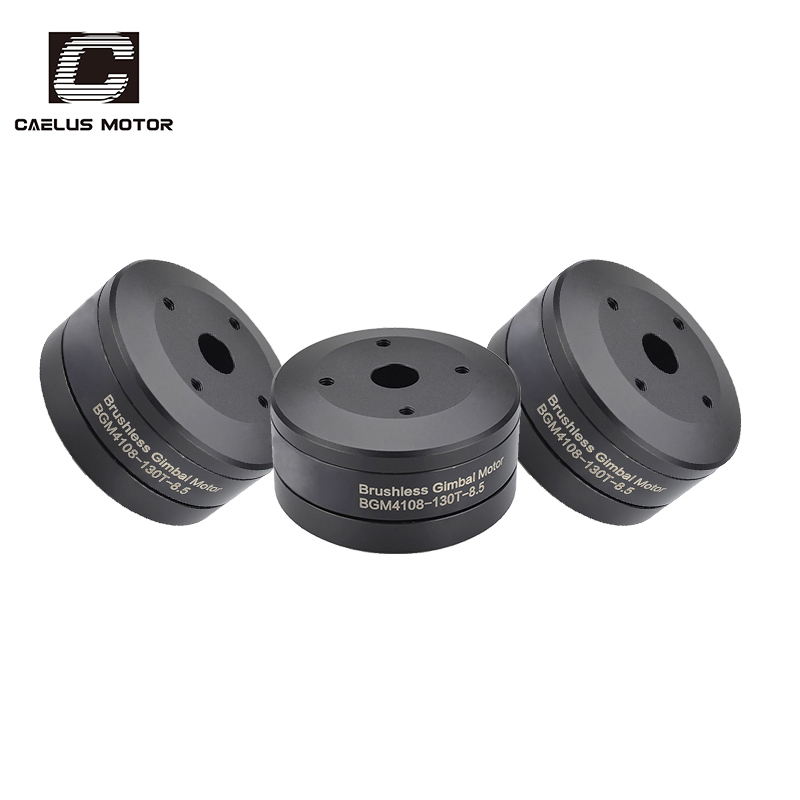

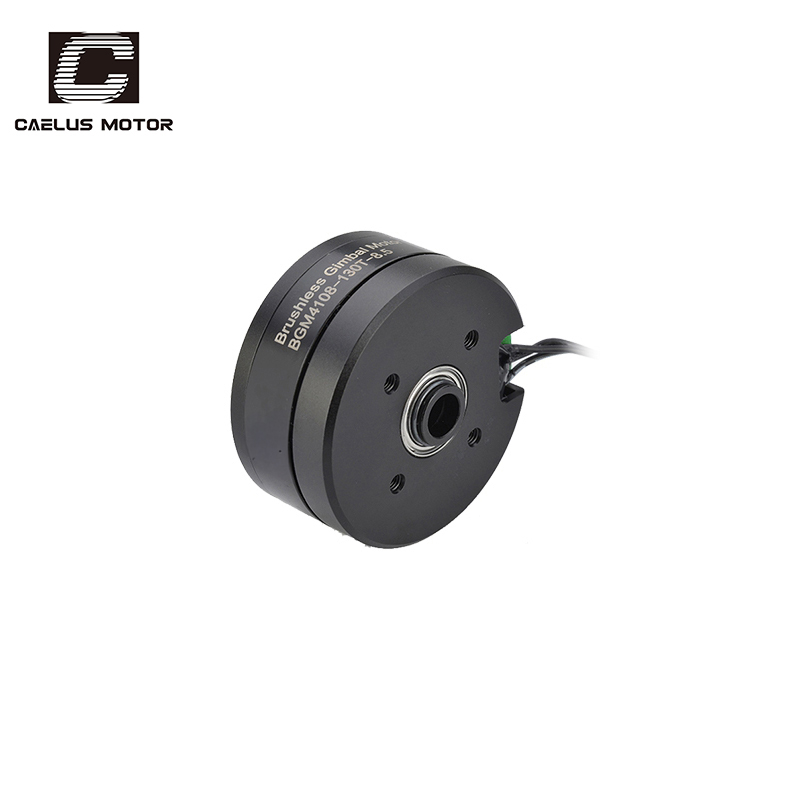

The BGM4108-130T-8.5 brushless gimbal motor is a top-tier model that is larger in size, more powerful in performance, and more professionally designed. It represents the flagship level of consumer and industrial heavy-duty stabilization systems. Its huge 41mm stator provides an unparalleled torque base, while the 130-turn winding with an extremely low KV value of 8.5 makes it a “precision power instrument” that pursues ultimate low-speed smoothness, control accuracy, and anti-disturbance capability.
It is not designed for ordinary aerial photography but for the most demanding professional film and television production and industrial applications. When the value of the load and the importance of the shooting task reach the top level, the absolute stability and reliability provided by the BGM4108-130T-8.5 become an indispensable technical guarantee. Using it means building a complex, expensive but performance-unmatched heavy-duty stabilization system.
BGM4108-130T-8.5 Gimbal Motor Specification
Weight：93g

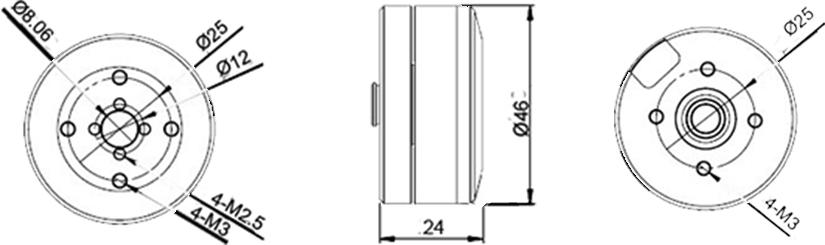

Motor Size：46*24mm
Shaft Size：Hollow shaft in 8.5mm
Resistance: 15.5ohm
Torque: 700g&5V&0.43
Working Temperature Range：-0℃~+80℃
Control Method：Use ESC And Adjust PWM signal For Control，PWM Adjustment Range 900- 2100US
Bell Material：7075-T6 Aluminum
Motor Type: External Rotor Brushless Motor,Three-phase Motor
