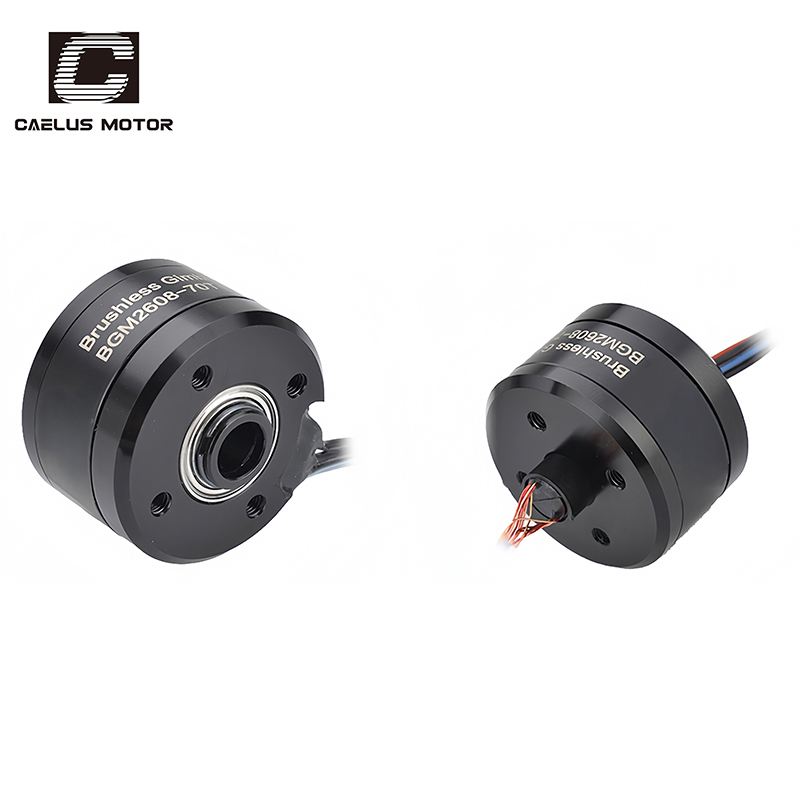

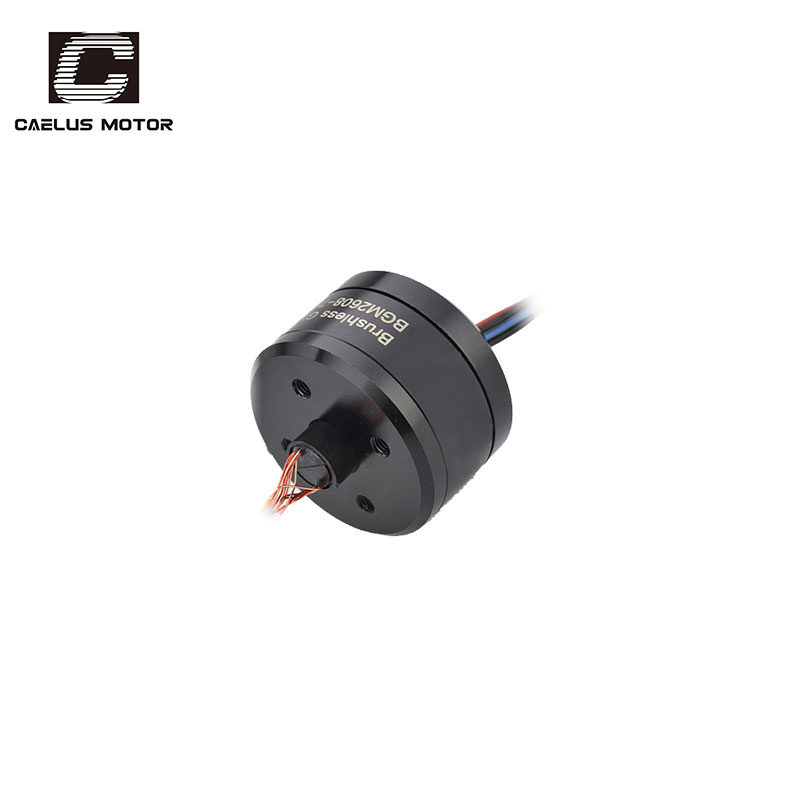

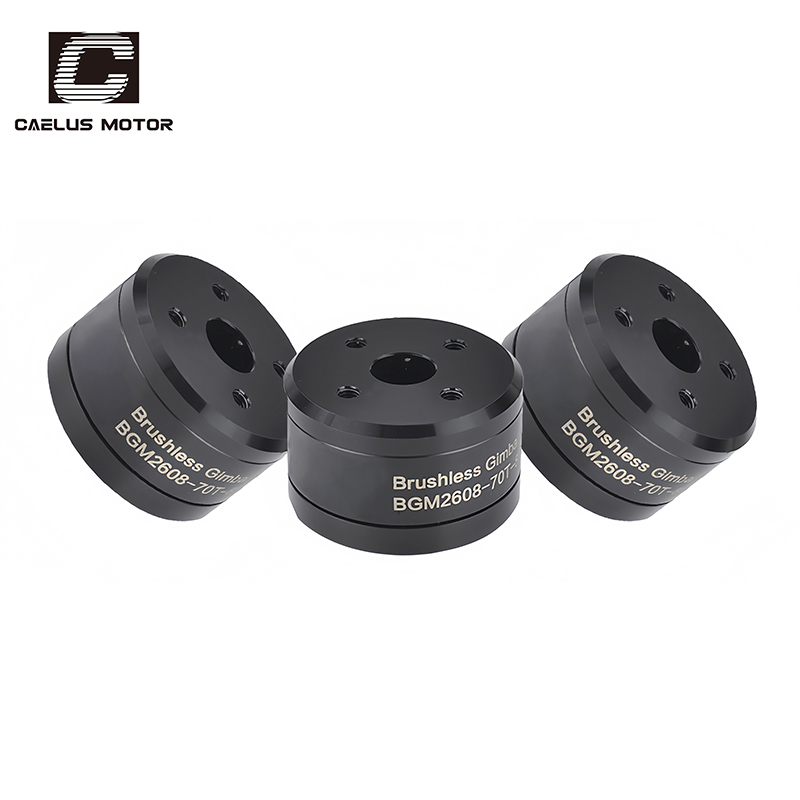

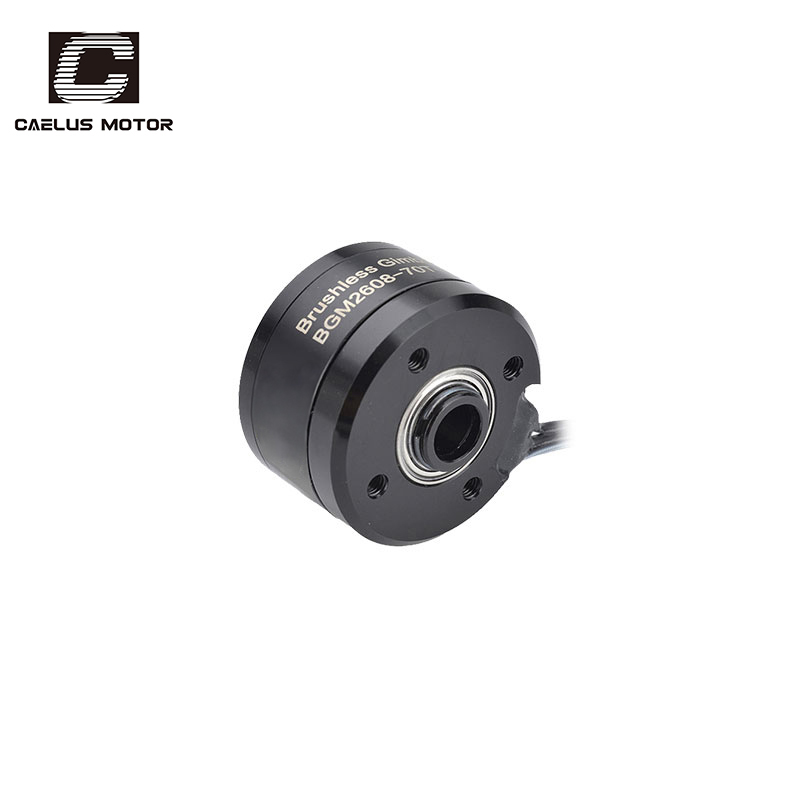

The BGM2608-80T is a flagship direct-drive brushless motor designed for heavy-duty professional gimbal systems. Its 26mm diameter and 8mm thick stator are the source of its powerful torque, while the 80-turn winding ensures excellent controllability even under high power. For users seeking a reliable full-frame mirrorless camera such as the Sony A7 series, the BGM2606-90T offers an ideal solution with comprehensive performance capabilities. For more demanding setups involving stable operation of professional cinema cameras like the Blackmagic Pocket 6K or RED KOMODO, as well as heavier configurations with large zoom lenses, the BGM2608-80T is specifically designed to deliver robust support and rapid responsiveness. It addresses higher-level requirements for driving performance in the pursuit of ultimate image stabilization.
BGM2608-80T Gimbal Motor Specification
Weight：40g

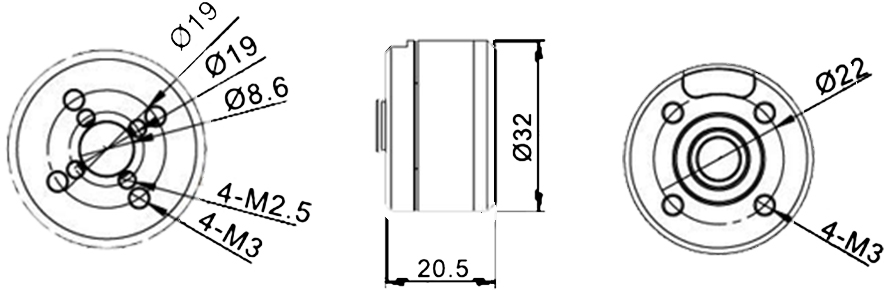

Motor Size：32*20.5mm
Shaft Size：Hollow shaft in 8.5mm
Resistance:8.0ohm
Torque: 470g&5V&0.8A/125kv
Working Temperature Range：-0℃~+80℃
Control Method：Use ESC And Adjust PWM signal For Control，PWM Adjustment Range 900- 2100US
Bell Material：7075-T6 Aluminum
Motor Type: External Rotor Brushless Motor,Three-phase Motor
Application：Model Aircraft、FPV Model180、210、250、280、300、320 Etc toothpick drone、Small Toy Drone、Other Speed Regulating Equipment
