Caelus Motor BGM2606-90T is specifically designed for direct-drive two-axis or three-axis camera gimbal systems. “Direct drive” means it typically connects directly to the gimbal axis without gears or belts, enabling ultra-smooth, cogging-free, and highly responsive motion control—essential for capturing stable and fluid footage.This is a high-performance direct-drive brushless motor designed for mid-to-high-end professional gimbal systems. Its combination of a 26mm stator diameter, 6mm thickness, and 90 turns of winding provides excellent low-speed torque and smoothness, making it ideal for stabilizing medium to heavy cameras (such as full-frame mirrorless cameras). Its performance directly determines the ultimate stabilization accuracy and image smoothness achievable by the gimbal, making it an indispensable core component in high-end shooting equipment.

BGM2606-90T Gimbal Motor Specification
Weight：40g

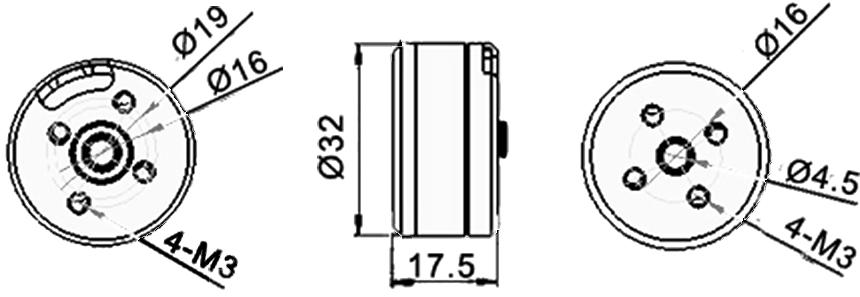

Motor Size：32*17.5mm
Shaft Size：Hollow shaft in 4mm
Resistance: 8.5ohm

Torque: 450g&5V&0.67A/120kv
Working Temperature Range：-0℃~+80℃
Control Method：Use ESC And Adjust PWM signal For Control，PWM Adjustment Range 900- 2100US
Bell Material：7075-T6 Aluminum
Motor Type: External Rotor Brushless Motor,Three-phase Motor

Application: Model Aircraft、FPV Model180、210、250、280、300、320 Etc toothpick drone、Small Toy Drone、Other Speed Regulating Equipment
