This is the most classic stage for the 3508 motor. It’s used in numerous quadcopters and hexacopters with wheelbases between 450mm and 650mm. It perfectly balances thrust, efficiency, and weight, and can carry equipment such as GoPros and mirrorless cameras. It’s also suitable for small agricultural drones with payloads of 5-10 liters, balancing power and cost.
Weight: 105.0g (including the cables)

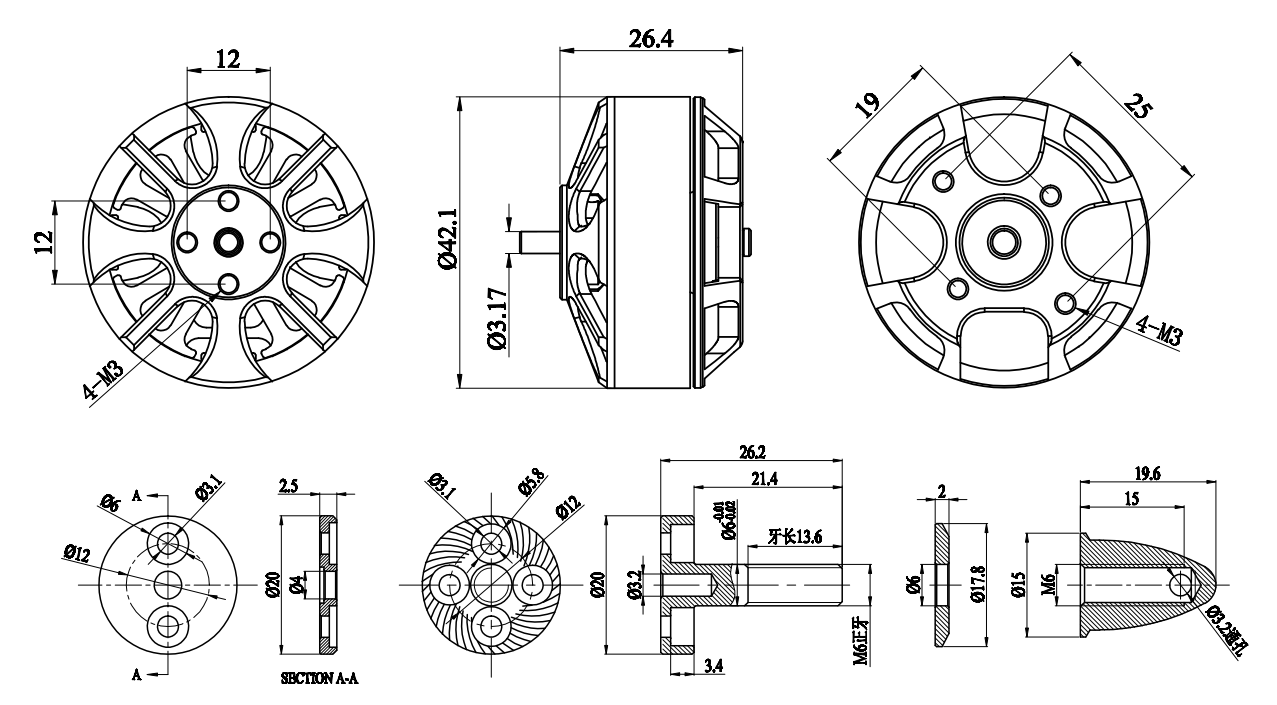

Motor Size: 42 x 26.4mm
Shaft Diameter: 4.0mm
Motor Mount: 19*25mm(M3*4)
Configuration: 12N14P
Motor Cable: 18#AWG 220mm
Recommend: 12~15″ inch prop application
KV Value: 370KV, 415KV,580KV and 700KV or customized KV
ST3508 370KV
Max thrust：1710g
Volts：22.2V(6S)
Suggested ESC: 20A~40A
Maximum Power：273W
Suggested Prop: CF1238TM, CF1447TM and CF1555TM prop
ST3508 415KV
Max thrust：1720g
Volts：22.2V(6S)
Suggested ESC: 20A~40A
Maximum Power：279W
Suggested Prop: CF1447TM,CF1555TM prop
ST3508 580KV
Max thrust：1590g
Volts：14.8V(4S)
Suggested ESC: 20A~40A
Maximum Power：254W
Suggested Prop: CF1238, CF1447 inch prop
ST3508 700KV
Max thrust：1920g
Volts：14.8V(4S)
Suggested ESC: 20A~40A
Maximum Power：370W
Suggested Prop: CF1238, CF1447, CF1555TM inch prop
